90 °-15dBi directional antenna base plate (824-960MHz)

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode: KTWTD-15090-08V /KTWTD-15090-09V
• Product Category:Yagi Antenna
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty


详细说明: Model KTWTD-15090-08V   KTWTD-15090-09V
FrequencyRange 824-896(MHz) 890-960(MHz)
Input Impedance 50(Ω)
VSWR <1.5
Gain 15(dBi)
(3dB)HPBW 90°H-plane 7°E-plane
F/B >23(dB)
Maximum Power 500(W)
Polarization Vertical Polarization
PIM <-107(dBm)
Connector Type 7/16 or N-K
Lighting Protection Direct Ground
Wind Velocity 200(km/h)
Height/Width/Depth 1700/280/110(mm)
Weight 15(Kg)
Hold Pole Diameter φ50-φ114(mm)

Mainfeature

 :
详细说明: Model KTWTD-15090-08V   KTWTD-15090-09V
FrequencyRange 824-896(MHz) 890-960(MHz)
Input Impedance 50(Ω)
VSWR <1.5
Gain 15(dBi)
(3dB)HPBW 90°H-plane 7°E-plane
F/B >23(dB)
Maximum Power 500(W)
Polarization Vertical Polarization
PIM <-107(dBm)
Connector Type 7/16 or N-K
Lighting Protection Direct Ground
Wind Velocity 00(km/h)
Height/Width/Depth 1700/280/110(mm)
Weight 15(Kg)
Hold Pole Diameter φ50-φ114(mm)

Application&scenarios

Specification
Parts/Warranty
■ Contact Us
E-mail:

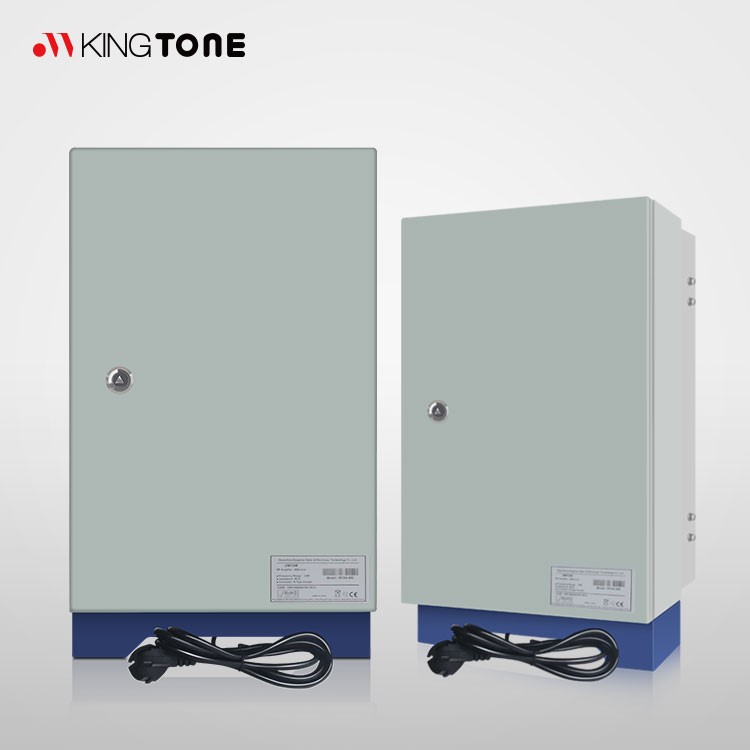

Products: UHF Tetra 400MHz Repeater Fiber Optic Signal Amplifier
