    UHF 400Mhz 2W Band Selective walkie talkie Repeater

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-CRP-B5-P33-B
    • Product Category:VHF/UHF Repeater
    • Power supply:AC 110VAC 220VDC -48VDC-24V AC 240
    • Frequency:UHF 400-470MhzVHF136-174Mhz&UHF400-520Mhz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    400M 2W Band Selective Repeaters（KT-CRP-B5-P33-B）

        Kingtone Repeaters
       kintone repeater system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

     Telephone repeater
    This is used to increase the range of telephone signals in a telephone line. They are most frequently used in trunklines that carry long distance calls. In an analog telephone line consisting of a pair of wires, it consists of an amplifier circuit made of transistors which use power from a DC current source to increase the power of the alternating current audio signal on the line. Since the telephone is a duplex (bidirectional) communication system, the wire pair carries two audio signals, one going in each direction. So telephone repeaters have to be bilateral, amplifying the signal in both directions without causing feedback, which complicates their design considerably. Telephone repeaters were the first type of repeater and were some of the first applications of amplification. The development of telephone repeaters between 1900 and 1915 made long distance phone service possible. However most telecommunications cables are now fiber optic cables which use optical repeaters (below).

    Cellular repeater
    This is a radio repeater for boosting cell phone reception in a limited area. The device functions like a small cellular base station, with a directional antenna to receive the signal from the nearest cell tower, an amplifier, and a local antenna to rebroadcast the signal to nearby cell phones. It is often used in downtown office buildings.


    Mainfeature

    Main Features of kingtone cellular repeater
    ◇ High linearity PA; High system gain；
    ◇ Intelligent ALC technology；
    ◇ Full duplex and high isolation from uplink to downlink；
    ◇ Automatic Operation convenient operation；
    ◇ Integrated technique with reliable performance;
    ◇ Bandwidth can be configured from 5-25MHz in work band.
    ◇ Local and remote monitoring (optional) with automatic fault alarm &remote control;
    ◇ Weatherproof design for all-weather installation;

    Application&scenarios

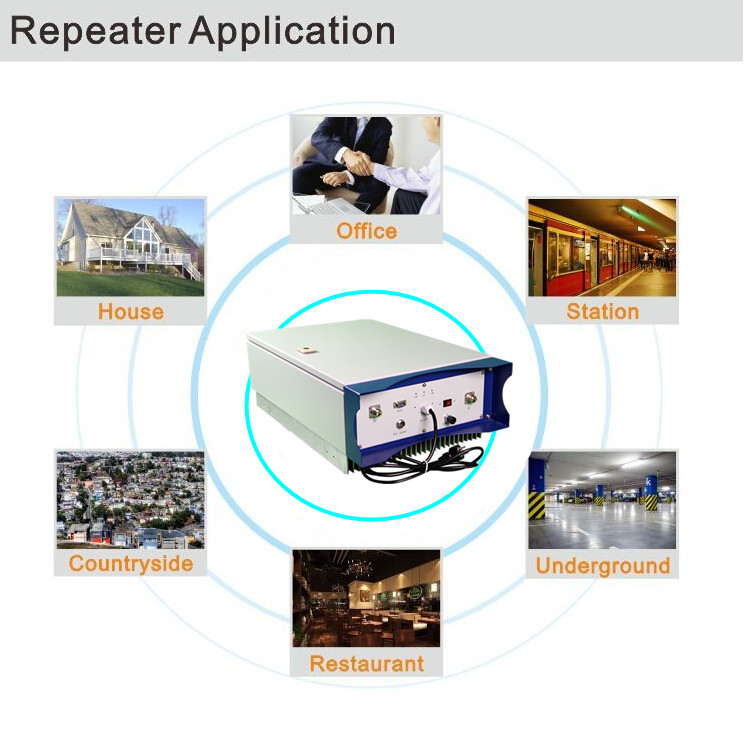

    TETRA 400 repeater Applications
        To expand signal coverage of fill signal blind area where signal is weak
    or unavailable.
       Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

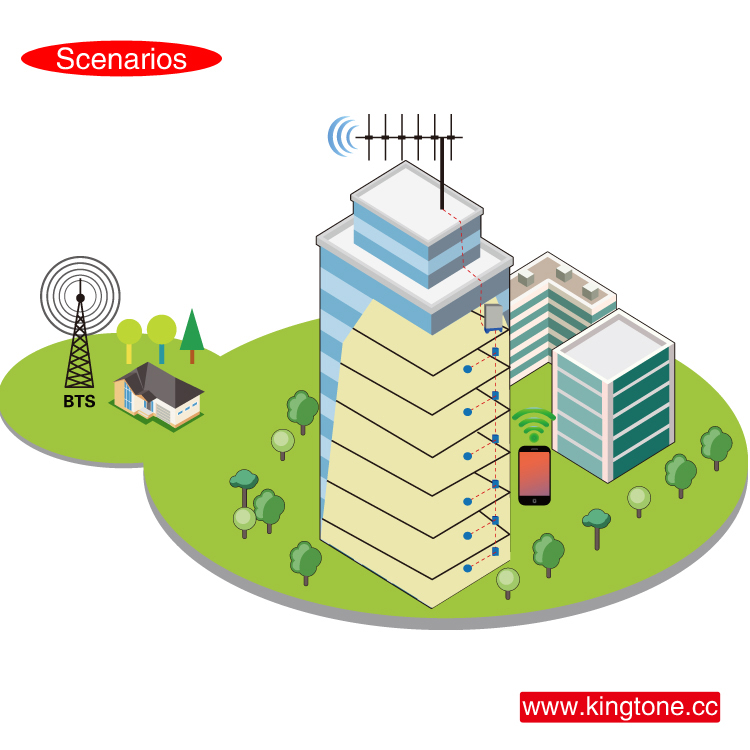

       Indoor: Hotels, Exhibition Centers, Basements, Shopping
    Malls, Offices, Packing Lots etc.
    It is mainly applicable to such case:

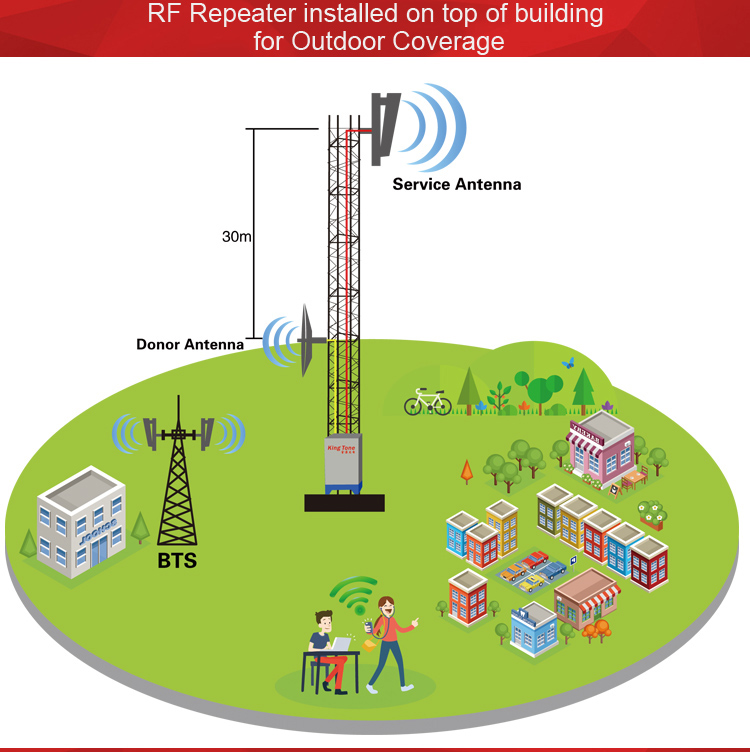

        The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;

        And can meet the requirement of antenna isolation to avoid self‐oscillation.






    Specification

    Items

    Testing Condition

    Specification

    Uplink

    Downlink

    Working Frequency(MHz)

    Nominal Frequency/customized

    410 – 415MHz

    420 - 425MHz

    Gain(dB)

    Nominal Output Power-5dB

    80±3

    Output Power (dBm)



    33

    33

    ALC (dBm)

    Input Signal add 20dB

    △Po≤±1

    Noise Figure (dB)

    Working in-band（Max. Gain）

    ≤6

    Ripple in-band (dB)

    Nominal Output Power -5dB

    ≤4.0

    Time Delay (us)

    Working in-band

    ≤5

    Gain Adjustment Step (dB)

    Nominal Output Power -5dB

    1dB

    Gain Adjustment Range(dB)

    Nominal Output Power -5dB

    ≥30

    Gain Adjustable Linear(dB)

    10dB

    Nominal Output Power -5dB

    ±1.0

    20dB

    Nominal Output Power -5dB

    ±1.0

    30dB

    Nominal Output Power -5dB

    ±1.5

    Out of Band Gain

    ±400KHz

    Nominal Output Power -5dB

    ≤50

    ±600KHz

    Nominal Output Power -5dB

    ≤40

    ±1MHz

    Nominal Output Power -5dB

    ≤35

    ±5MHz

    Nominal Output Power -5dB

    ≤25

    Inter-modulation Attenuation (dBc)

    Working in-band

    ≤-45

    Spurious Emission(dBm)

    9kHz-1GHz

    BW:30KHz

    ≤-36

    ≤-36

    1GHz-12.75GHz

    BW:30KHz

    ≤-30

    ≤-30

    VSWR

    BS/MS Port

    1.5

    I/O Port

    N-Female

    Impedance

    50ohm

    Operating Temperature

    -25°C ~+55°C

    Relative Humidity

    Max. 95%

    MTBF

    Min. 100000 hours

    Power Supply

    DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)

    Remote Monitoring Function

    Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power

    Remote Control Module

    RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery
    Parts/Warranty
    warranty :1year for repeater ,6months for accessories
