    27dbm LTE 4G 2600mhz Band Band Selective cellular phone Repeater booster amplifier

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-LRP-B70-P27-VII
    • Product Category:Single Band Booster
    • Power supply:AC 110VAC 220VDC -48V
    • Frequency:2500-2570MHz/2620-2690MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

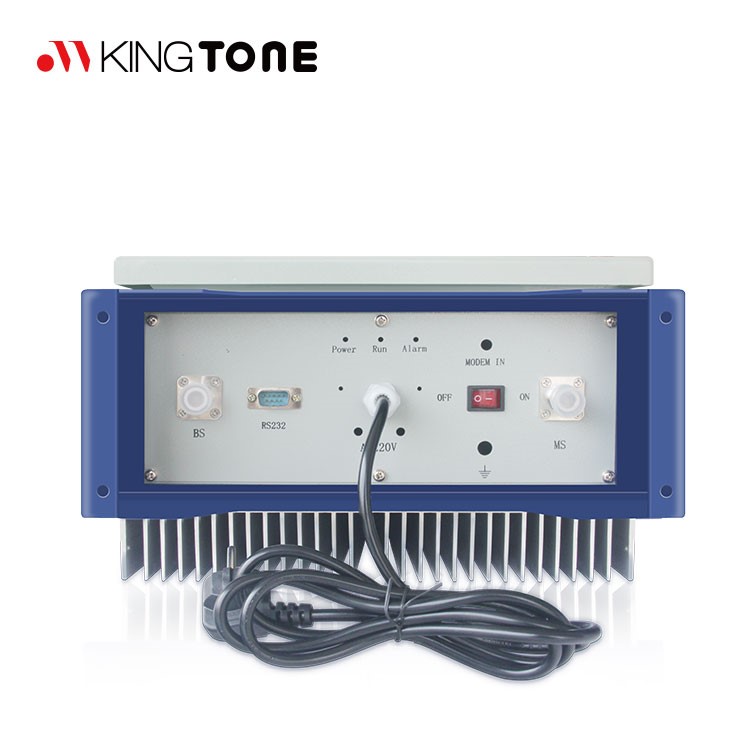

    501LTE Band VII 0.5W Band Selective Repeaters（KT-LRP-B70-P27-VII）

         Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

     What will be changed when using this products?
     1 A cheap and immediate solution that would allow them have clear phone calls or higher speed broad band;
     2 No more dropped calls! No more poor reception;
     3 No more running to the windows or going outside to talk on your mobile phone;
     4 Now you can reach everywhere with signal boosters;

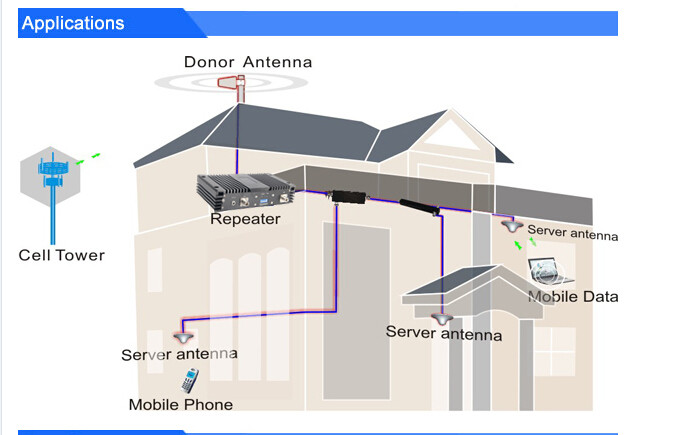

     How can repeater bring your mobile phone better signal?
    1.The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone rep   eater through the connection cable (coax).
    2.After the signal is accepted by the mobile repeater, this device amplifies it.
    3.Then this amplified signal goes through the connection cable (coax) to the inside antenna.
    4.And after that, the amplified signal transmits to your cell phone.
    5. Finally, your cell phone will get good signal, never on and ofF

    Mainfeature

    Cellular repeater Main Features
    ◇ High linearity PA; High system gain
    ◇ Intelligent ALC technology
    ◇ Full duplex and high isolation
    ◇ Sharp filter curve
    ◇ Automatic Operation convenient operation
    ◇ Modular design ease to maintain
    ◇ Remote control/monitor/alarm via RF MODEM or Ethernet

    ◇ IP65 chassis design for both indoor and outdoor application

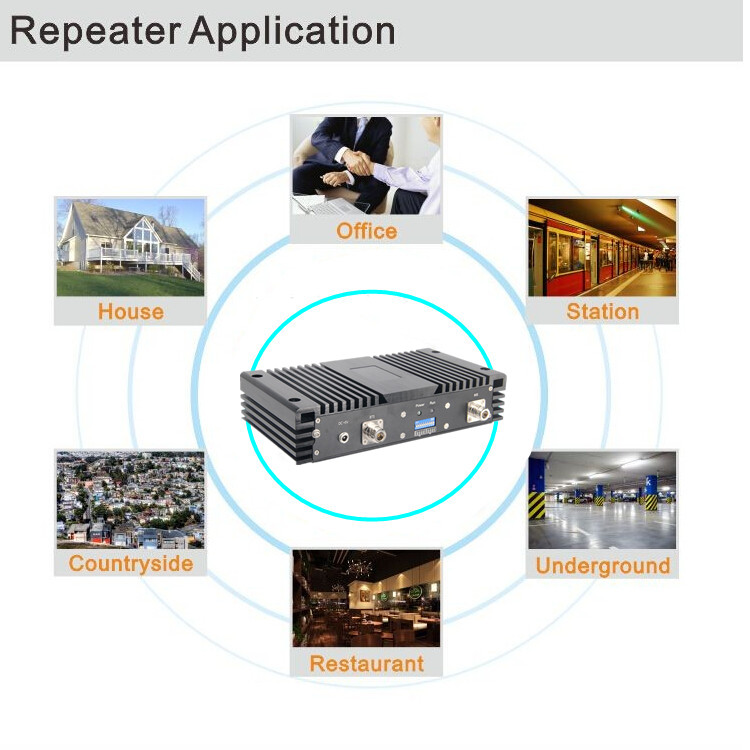

    Application&scenarios

    4g lte signal repeater booster Applications
        To expand signal coverage of fill signal blind area where signal is weak
    or unavailable.
       Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
       Indoor: Hotels, Exhibition Centers, Basements, Shopping
    Malls, Offices, Packing Lots etc.
    It is mainly applicable to such case:
        The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;

        And can meet the requirement of antenna isolation to avoid self‐oscillation.




    Specification

    Technical Specifications

    Items

    Testing Condition

    Specification

    MEMO

    Uplink

    Downlink

    Working Frequency(MHz)

    Nominal Frequency

    2500 – 2570 MHz

    2620 – 2690 MHz

    LTE

    Gain(dB)

    Nominal Output Power-5dB

    85±3



    Output Power (dBm)

    GSM modulating signal

    24

    27



    ALC (dBm)

    Input Signal add 20dB

    △Po≤±1



    Noise Figure (dB)

    Working in-band（Max. Gain）

    ≤5



    Ripple in-band (dB)

    Nominal Output Power -5dB

    ≤3



    Frequency Tolerance (ppm)

    Nominal Output Power

    ≤0.05



    Time Delay (us)

    Working in-band

    ≤5



    ACLR

    Working in-band

    Compatible with 3GPP TS 36.143 and 3GPP TS 36.106

    For LTE, PAR=8

    Spectrum Mask

    Working in-band

    Compatible with 3GPP TS 36.143 and 3GPP TS 36.106

    For LTE, PAR=8

    Gain Adjustment Step (dB)

    Nominal Output Power -5dB

    1dB



    Gain Adjustment Range(dB)

    Nominal Output Power -5dB

    ≥30



    Gain Adjustable Linear(dB)

    10dB

    Nominal Output Power -5dB

    ±1.0



    20dB

    Nominal Output Power -5dB

    ±1.0



    30dB

    Nominal Output Power -5dB

    ±1.5



    Spurious Emission(dBm)

    9kHz-1GHz

    BW:30KHz

    ≤-36

    ≤-36













    1GHz-12.75GHz

    BW:30KHz

    ≤-30

    ≤-30



    VSWR

    BS/MS Port

    1.5



    I/O Port

    N-Female



    Impedance

    50ohm



    Operating Temperature

    -25°C ~+55°C



    Relative Humidity

    Max. 95%



    MTBF

    Min. 100000 hours



    Power Supply

    DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)



    Remote Monitoring Function

    Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power



    Remote Control Module

    RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery





    Parts/Warranty
    12 month warranty for repeater equipment ,
    6months for accessories of repeater
