400-470MHz 4 Way Cavity Splitter

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-CPS-400-04
• Product Category:Power Splitter
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

The 400-470MHz 4 Way Cavity Splitter is perfect for applications that require coverage of up to three different areas from a walkie talkie repeater base unit.
Frequency Range 400-470MHz which wroks with UHF band ;

Mainfeature

• Wide Frequency Band:400-470MHz
• Compact, lightweight design
• Easy to mount
• High isolation, low insertion loss and minimal VSWR
• Excellent value - Superior performance at a competive price

Application&scenarios

Specification

Model No.:

KT-CPS-400-04

Frequency Range

400-470MHz

Split Loss

6.0dB

Insertion Loss

0.3dB

VSWR max

1.25

PIM 3

-150dBc@2 x43dBm

Impedance

50Ω

RF Connector

N-F

Average Power

200W

Temperature

-20 ~ +70

Weight

0.22kg

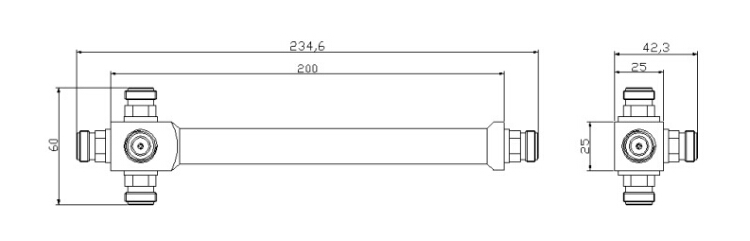

Dimension

235 * 60 * 42.5mm


Parts/Warranty
