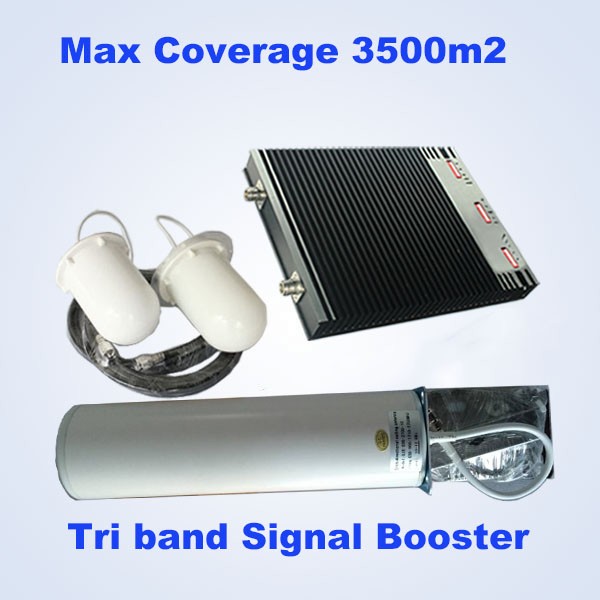

    High gain 3g 4g gsm dcs lte 900/1800/2600 bts tri-band mobile signal booster

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-GDL27
    • Product Category:Tri-band Booster
    • Power supply:
    • Frequency:
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    Product Description

    Cellphone Signal Booster is also called cellphone signal amplifier/ repeater, or mobile signal booster/amplifier/repeater, and the Mini cellphone signal booster tri-band which can works for GSM900MHz&DCS1800MHz&4G world-wild GSM900,1800 and 4G system.

    Cell phone signal booster is a products designed to solve the mobile phone blind signal. In some places such as tall buildings, underground rooms, countryside, your cell phone can not receive the signal well. Then, a repeater/booster/amplifier can help you. Mobile phone signal repeaters/boosters/amplifiers are able to pick up weak cellular signal from a BTS and transmit them to your mobile phone, and then transmit a more powerful signal back to the BTS. Mobile phone signal repeaters overcome the problem of dropped calls, limited range and slow data rates.






    Mainfeature

    • Elegant appearance,mini size,light weight
      Easy installation
      No interference to the base station, no harm to people health.
      CE& RoHS proved.
      Low consumption
      ALC technology
      Stable performance
      Environment Friendly, Energy- Efficient
      Comply to the ETS300 694-4 standard
      Comply to the GB6993-86 standard
      Wide band repeater to support signals of all operators.
      High-integration(One board to contain low-noise amplifier, frequency selection module, power amplifier module, both uplink and downlink one foe all).
      Manual gain control,Automatic gain control, Artifical Intelligence function can protect the repeater together the BTS perfectly.
      Auto shut off function as final step to avoid severe interference with mobile net network and energy saving.

    Application&scenarios

    =


    Specification

    Uplink
    Downlink
    Frequency Range
    GSM900
    890 ~ 915 MHz
    935 ~ 960 MHz
    DCS
    1710 ~ 1785 MHz
    1805~ 1880 MHz
    LTE
    2500-2570MHz
    2620-2690MHz
    Max .Gain
    ≥ 70dB
    ≥ 75dB
    Max .Output Power
    ≥ 24dBm
    ≥27dbm
    MGC ( Step Attenuation )
    ≥ 31dB / 1dB step
    Automatic Level Control
    ≥ 20dB
    Gain Flatness
    GSM & CDMA
    Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)
    WCDMA
    ≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)
    Spurious Emission &

    Output inter-modulation
    GSM Meet ETSI TS 151 026 V 6.1.0
    WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
    CDMA Meet IS95 & CDMA2000
    Parts/Warranty
    12 months warranty.
