    Wholesale Baofeng UV 5R Dual Band Radio Vhf Uhf Two Way Radio 8 Watt Long Range Walkie Talkie Baofeng UV-5R

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:
    • Product Category:Handheld Radio
    • Power supply:AC 110VAC 220V
    • Frequency:VHF 136-174mhzUHF 400-470MhzVHF136-174Mhz&UHF400-520Mhz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

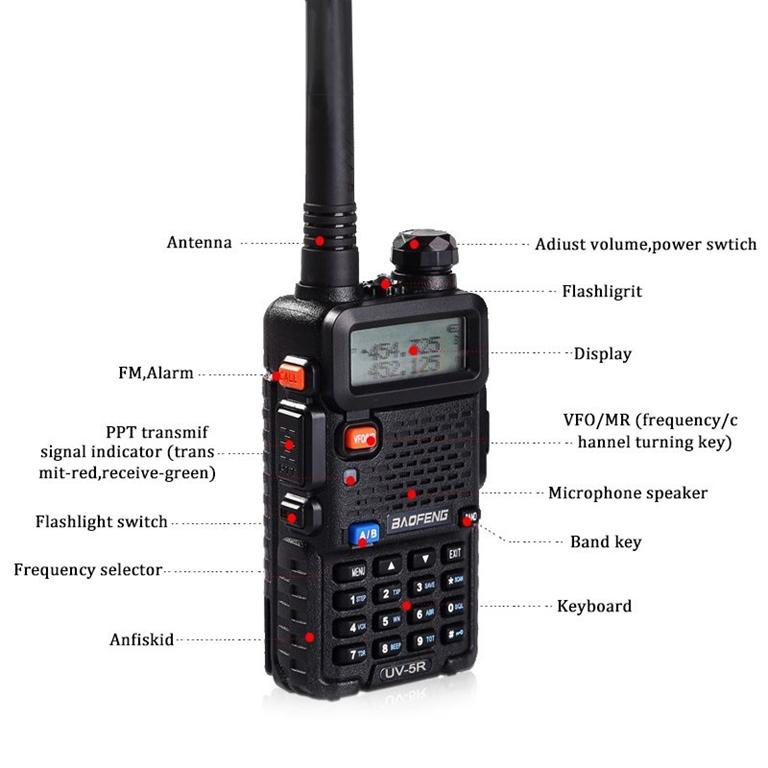

    This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

    The Baofeng UV-5R is one of the most popular dual band handheld two way radios on the market worldwide.The Baofeng UV-5R Two-Way Radio is designed to provide reliable, clean and trouble-free communication.

    Baofeng UV-5R is an economical Dual Band UHF/VHF Amateur Radio that's extremely compact. With 128 channel capacity and up to 12 hours of battery life, the UV-5R is a good choice for ham radio operators who need mobility at low cost.

    The Baofeng UV-5R series of radios will receive and transmit on FM modulated VHF frequencies between 136-174MHZ and on FM modulated UHF frequencies between 400-480/520MHz. It will also receive only (but not transmit) on FM modulated VHF frequencies between 65 – 108 MHz.



    Mainfeature

    Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-520HZ (TX/RX)
    Channel No.: 128
    Frequency Stability: ±2.5ppm
    Antenna: High gain Dual Band antenna
    Antenna Impedance: 50?
    Operating Voltage: DC 7.4V
    Mode of operation: Simple or semi-duplex

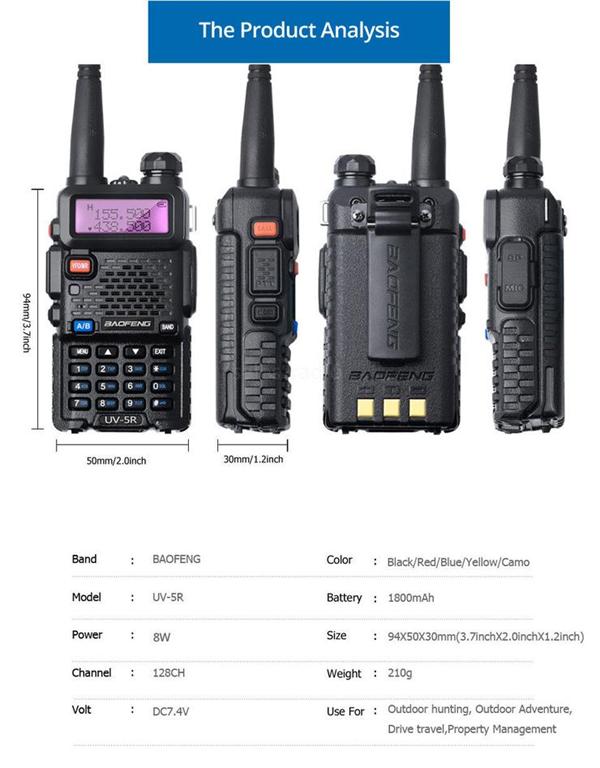

    Dimension (W x H x D): 100 x 52 x 32 mm
    Weight: 250g (including battery, antenna)
    Transmitter Output power: 4W / 1W (Max 5W)
    Modulation Mode: 16k?F3E / 11k?F3E
    Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
    Spurious Radiation: <7?W
    Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)
    Pre-emphasis characteristics: 6dB
    Current: <=1.6A(5W)
    CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
    Intermediation sensitivity: 8-12mv

    Intermediation distortion: <10%


    Application&scenarios




    Specification

    Hot Spots

    Dual band / dual display / dual standby

    A/B band independent operation(UV UU VV)

    128 groups channels storage

    Shortcut menu operation mode

    VFO & Memory channels scan

    Emergency Alarm

    Time-out Timer (TOT)

    0~9 grades VOX selectable

    PTT & ANI ID

    FM radio and 25 stations storage

    Voice commanding

    50 CTCSS/104 DCS

    High/Low TX power selectable

    Busy channel lock-out(BCLO)

    DTMF function

    OFF SET function

    Wide/Narrow Band(25kHz/12.5kHz)

    Yes



    VOX function

    Yes



    Busy lockout function

    Yes



    Frequency step

    Yes

    2.5/5/6.25/10/12.5/25KHz

    Scanning function

    Yes



    Monitor function

    Yes



    Time-out Timer (TOT) function

    Yes



    LCD display

    Yes



    Dual display

    Yes



    Battery voltage display

    Yes



    Channel name display editing

    Yes



    Signal strength indicator

    Yes



    Keypad lock function

    Yes



    Built-in Led torch

    Yes



    FM radio

    Yes



    Wire clone function

    Yes



    Emergency alarm function

    Yes



    Low battery alarm

    Yes



    Power saving function

    Yes



    High/Low TX power selectable

    Yes

    5W/1W

    ROGER SET

    Yes



    Chinese English voice prompt

    Yes



    PC software programmable

    Yes



    Rated Voltage

    7.4V DC±10%

    Output power

    ≤ 5W

    Battery type

    Li-ion battery

    Battery capacity

    1800mAh

    Working temperature

    -20~+50°C

    Antenna Impedance

    50Ω

    Weight

    255g

    Dimension(L×W×H)

    58×32×110mm(Not Antenna)

    Specification

    Frequency stability

    ±2.5ppm

    Carier wave tolerance

    5ppm

    Modulation

    16kΦF3E / 11kΦF3E

    Max frequency deviation

    < 5kHz(Wide)

    < 2.5kHz(Narrow)

    Modulation character

    6 dB per fold frequency patch

    Emission current

    < 1.6A(5W)

    CTCSS / DCS

    0.5±0.1kHz(Wide)

    0.3±0.1kHz(Narrow)

    Sensitivity

    < 0.16μV(12dB SINAD)

    Silent sensitivity

    < 0.2μV

    Intermediation Distortion

    <10%

    Inter modulation

    8-12mv

    Adjacent channel selectivity( wide/narrow)

    <-65dB(Wide) <-60dB(Narrow)

    Parts/Warranty

    1 x Baofeng UV-5R 136-174/400-520MHz Dual-Band FM Two-way Ham Radio

    1 x 1800mAh Li-ion Battery

    1 x Antenna

    1 x Charger

    1 x Belt Clip

    1 x User’s Manual
