    HJ700P Jimtom Best Handy Long Range Mobile Public Network Walkie-Talkie 2G 3G 4G Wi-Fi IP Radio

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:
    • Product Category:Handheld Radio
    • Power supply:
    • Frequency:
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    HJ700P Jimtom Best Handy Long Range Mobile Public Network Walkie-Talkie GSM WCDMA Radio

    With 3g/4g data sim card or Wi-Fi online internet , the radios can talk in unlimited range.



    1. Single Call: The walkie talkie would make a call to a user in the same group while other member not hear this calling
    2. Group Call: The walkie talkie would make a call to all members in the group.

    3. All Call: This is most priority call, It would call to all radios whatever they are in same groups or not.



    GPS LOCATION
    The radio can send GPS location information to sever software management platform. The software platform will show all radios's GPS location.

    Andriod Phone APP TALK TO RADIO
    When your andriod phone install the APP, you can use andriod phone talk to the radio, at the same time, the radio can talk to your phone also.

    The radio can get online via Wi-Fi or use as a hotspot
    The radio can get online via 2g/3g/4g or via Wi-Fi, after getting online, it will be able to talk to other radio in same group around the world.
    The radio can also use as a hotspot and supply Wi-Fi signal to other mobile device like phone, pad, etc.

    Mainfeature

    1) Simply press to talk and you can communicate around the world without build repeater
    2) Use mobile data or Wi-Fi to connection and you can talking all around the world
    3) Supports 2G/3G/4G/WI-FI (insert your sim card to talk simply)
    4) Single call, group call, GPS location, voice recording available in server software
    5) Working frequency:
    A) GSM850/EGSM900/DCS1800/PCS1900, WCDMA 2100mAh + 850Mhz or
    B) GSM850/EGSM900/DCS1800/PCS1900, WCDMA 2100mAh + 900Mhz
    6) Control center can record all information
    7) Can communicate with Andriod phone's APP
    8) Can be widely used in the following applications: logistics, freight, taxi, urban management, medical aid, security system, high-end property, large construction sites and other industry users
    9) Available with long distance dispatching software with GPS positioning, one to group calls, one to one private call, track playback, audio, monitor, recording play etc
    10) Mobile traffic/mobile data:
    -It is 2.88M per hour for unstopping communication, it is 0.06M on the standby mode per day
    -Most of customers use 300M per month, it can support 3 to 4 hours for unstopping communication every day.
    -11) Final users and agents:
    -There are 500,000 users in the world at present
    -Our customer from Singapore, Ireland, Costa Rica, Indonesia, Kazakhstan, Australia, Malaysia, South Afric, UK and United States

    Application&scenarios

    Specification
    1Model
    HJ700P

    Network Standard
    LTE/WCDMA/GSM

    Working Frequency
    GSM850/EGSM900/DCS1800/PCS1900
    WCDMA: 850/1900 or 900/2100

    Transmit Power
    GSM、EGSM (33±1dBm)
    DCS、PCS (30±1dBm)
    WCDMA (23±1dBm)

    Antenna
    Built-in WIFI, GPS antenna, external whip antenna

    Receiving sensitivity
    -106dBm

    Call Delay
    ≤0.6-1.2 Second

    Audio Output Power
    ≥1W

    WIFI standard
    IEEE802.11b/g

    Display
    Yes

    Keyboard
    No

    GPS positioning
    ≤20 Meters

    Battery parameters
    DC 3.7V 5000mAh

    Charging method
    Support charger and USB charging

    Management platform
    V3.0 Version

    Size: H * W * D
    135mm *62mm*37mm（Not including antenna）

    Weight
    255g（With antenna, wallet）

    Operating tempe
    -20℃/+50℃

    Storage temperature
    -40℃/+80℃



    Parts/Warranty
    1. What is the frequency of this walkie talkie, Does it support 4G?
    The major frequency is 850mhz or 900 mhz depend on requirement, Yes, It supports 4G/LTE in some country!

    2. Does this radio can communicate with other conventional radio UHF or VHF?
    No, they are different so no way to communicate

    3. How to use this walkie talkie
    Insert the sim card simply and you can communicate in whole world!

    4. Except the sim card data charges, any other charges for use them?
    No, Not other charges except pay the 2g/3g data to your provider, platform is free to use

    5. How many data Mb you will use for this walkie talkie?
    Less than 5 Mb for ongoing conversation traffic per hour, So it use about 500M data from the sim card per month.

    6. Does this radio connect to WI-FI network
    Yes, you can connect this radio to Wi-Fi network and you can conversation all over the world.

    7. Does this radio have one GPS function?
    Yes, you can login in server software platform to see the GPS location of radios. (this function is for dealer only)

    8. Does any application you can use with this radio?
    Yes, you can install our App on Andriod phone to talk with this walkie talkie (this function is for dealer only)
    ■ Contact Us
    E-mail:
    Products: UHF Tetra 400MHz Repeater Fiber Optic Signal Amplifier
    BDA widely used in trunking communication systems
    Subject:
    Message:
    Quantity needed:
    Verification:
    ■ Solution&Application

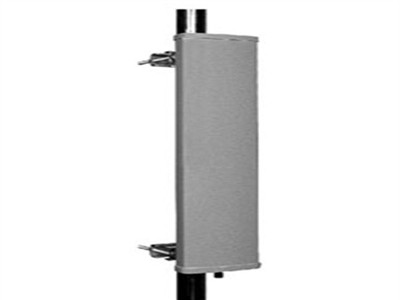

    • *Model : KTWTD-15065-08S /KTWTD-15065-09S
      *Product Category : 65 °-15dBi dual-polarized flat panel directional antenna base station (824-960MHz)

    • *Model :
      *Product Category :

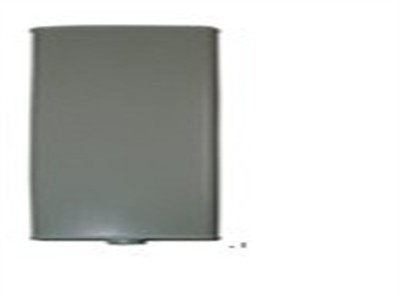

    • *Model : KTWTI-7-08/2.5V-G
