    10W High Output Power Outdoor/Indoor 3G UMTS/HSDPA WCDMA Fiber Optical Repeater 2100MHz Signal Amplifier

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-3G/B60-P10
    • Product Category:3G UMTS/WCDMA Repeater
    • Power supply:AC 110VAC 220VDC-24V
    • Frequency:1920-1980MHz/2110~2170MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    10W High Output Power Outdoor/Indoor 3G UMTS/HSDPA WCDMA Fiber Optical Repeater 2100MHz Signal Amplifier consist of Master and Slave. One Master can work together with 1 to 4 Slaves. The Master transfers the BTS signal into optical signal and transmits the optical signal to the Slaves. The Slaves transfer the optical signal into RF signal, amplify the RF signal and cover the target areas. The application of GSM Fiber Optical repeaters will effectively eliminate the signal blind areas, enhance the network quality, improve the image of cellular operators and bring them more profit.

    As per the method of receiving BTS signal by the Donor Unit, two types of FOR are available:
    Cable-Access FOR: to receive BTS signal via a direct coupler closed to the BTS (recommended)

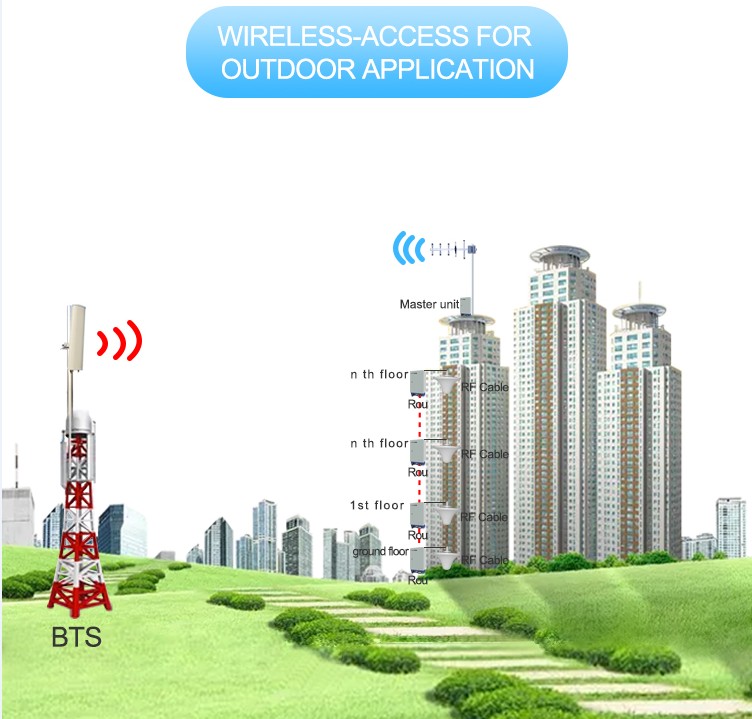

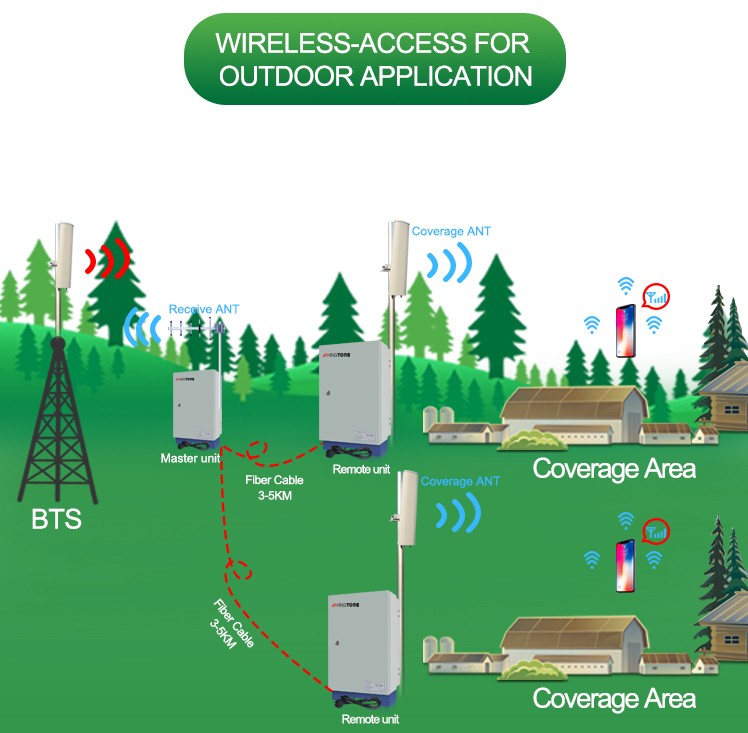

    Wireless-Access FOR: to receive BTS signal via a Donor Antenna (applicable when no fiber optic cable connecting to the BTS); can be sorted into 2 sub-categories: Band-Selective and Channel-Selective




    Mainfeature

    Features:
    1,No more self-oscillation and easy to choose installation location
    2,For Cable-Access type, pure BTS signal picked up by the Donor Unit will greatly reduce the signal noise
    3,The Remote Unit can be installed out of the BTS coverage
    4,A full 360-degree coverage can be achieved
    5,No need to occupy frequency resource as the link frequency

    Application&scenarios

    Kingtone Outdoor/Indoor 3G WCDMA Fiber Optical Repeater 2100MHz Signal Amplifier are mainly used in indoor area and outdoor areas already with optic fibers. They are widely used in the places below.
    Railway Tube Scenery spot
    Campus Hospital Oil field
    Road Sea-route Town
    Rural area Airport Venue
    Electrical Specifications

    Specification

    Specification:

    Type

    KT- Outdoor/Indoor 3G WCDMA Fiber Optical Repeater 2100MHz Signal Amplifier

    Frequency

    UL:1920~1980MHz DL:2110~2170MHz

    Output Power

    33dBm

    37dBm

    40dBm

    43dBm

    Gain

    50-65dB

    Gain Adjust Range

    ≥30dB;1dB/step

    AGC Range

    ≥25dB

    IMD3

    ≤-50dBc

    ≤-45dBc

    Noise Figure

    ≤5dB

    Ripple in Band

    ≤3dB

    Time Delay

    ≤10μs

    Spectrum mask

    Meet ETSI specification

    Spurious Emission

    9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz

    Port Impedance

    50Ω

    VSWR

    ≤1.5

    Monitoring Mode

    Local;Remote(Optional)

    Power Supply

    AC220V(Normal); AC110V or DC48V or Solar Powered(Optional)

    Weight

    21kgs

    21kgs

    26kgs

    32kgs

    Software

    Standard

    Local Monitoring

    PC via USB Port

    Remote Monitoring

    Via SMS or GPRS Modem

    Controlled Parameters

    Gain, Frequency, Repeater ON/OFF, Alarm Enable, etc.

    Monitoring Parameters

    Gain, Frequency, Repeater ON/OFF, Alarm Message.

    Alarm Items

    Repeater Failure, DC Failure, ALC Alarm, PLL Failure

    Parts/Warranty
    12months
