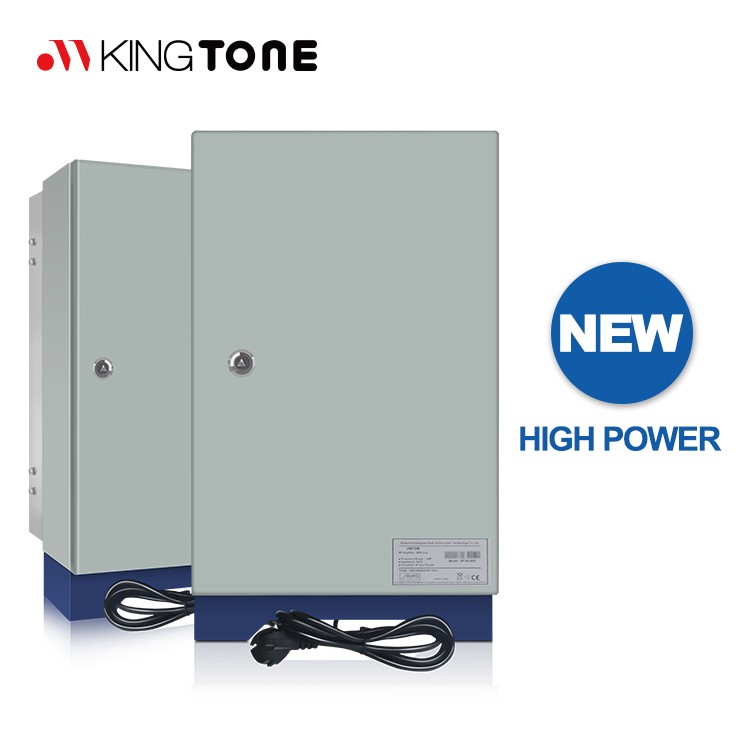

    Industrial GSM 900 WCDMA 2100 4G LTE 1800 mhz Tri-band Mobile Signal Booster 2G 3G 4G Cellular Signal Repeater

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-2G 3G 4G
    • Product Category:Tri-band Repeater
    • Power supply:AC 110VAC 220V
    • Frequency:890-915MHz/935-960MHz1710-1785MHz/1805-1880MHz1920-1980MHz/2110~2170MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    Public Communication 2G/3G/4G Mobile Network Products:
    2G Signal Strength Improve Voice
    2G Network Repeater: CDMA 800, GSM 850, GSM 900,DCS1800 GSM 1800 GSM 1900
    3G Strength Improve Voice + 3G Internet
    3G Network Repeater: UMTS 850, UMTS 900 UMTS 1900, UMTS 2100

    4G Signal Strength Improve Voice + 4G Internet
    4G Network Repeater: LTE 700, LTE 800, LTE 1700, LTE 1800 LTE 1900, LTE 2100, LTE 2300 , LTE 2600
    Which Frequency?4G (also called LTE) is for high speed data only. It cannot be used for voice calls.3G , (also called UMTS), is for voice and 3G data. Data speeds are not as fast as 4G.2G, (also called GSM) is for voice calls only.Telecom RF Signal 2G 3G 4G LTE Wireless In-Building Cellular Coverage Solutions & Broadband Repeaters 900 1800 2100 2600 in mobile communication repeaters would be an optional solution to cover areas that can not be covered by base stations.

    Mainfeature

    1, high system gain and the gain is continuously adjustable;
    2, full duplex operation, high / down isolation;
    3, with automatic start and stop function devices, reducing the demand for professional engineers;
    4, two-port standard design, installation is very easy;
    5, the device uses the Integration of methods to improve stability of the equipment;
    6, using ALC control, continuously adjustable output level;
    7, intelligent monitoring, fault alarm and remote maintenance (remote feature is optional);
    8, high linearity power amplifier, stable performance;
    9, the design of lightning protection, lightning protection systems.

    Application&scenarios

    In order to expand the coverage of fill signal blind area, the signal is weak or unavailable.
    Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages and so on.
    Indoor: Hotels, exhibition centers, basements, shopping malls, office buildings, and other packaging area.

    NOTE:
    Mainly applicable to this case:

    Repeaters can find the installation place can receive pure BTS signal at strong enough level relay station as the reception level should exceed -70dBm; and to meet the requirements of the antenna isolation, in order to avoid self-oscillation.、





    Specification
    TECHNICAL SPECIFICATION



    Item
    Industrial GSM 900 WCDMA 2100 4G LTE 1800 mhz Mobile Signal Booster 2G 3G 4G Cellular Signal Repeater

    FrequencyRange
    Uplink
    890-915MHz / 1710-1785MHz / 1920-1980MHz / 2600MHz


    Downlink
    935-960MHz / 1805-1880MHz / 2110-2170MHz/ 2600MHz


    Output
    Power
    Uplink
    Min +23dBm - +33dBm +37dBm


    Downlink
    33dBm ,37dBm,40dBm,43dBm

    Working Bandwidth
    Various bandwidth is available upon request

    Gain
    Min. 90dB-95db

    GainControl Range
    31dB (1dB Step)

    VSWR
    < 1.5

    Ripple in Band
    Max +/- 1.5dB

    Spurious
    Emissions
    9KHz-1GHz
    Max -36dBm

    1GHz-12.75GHz
    Max -30dBm

    ACPR
    ≤-45dBc

    ≤-55dBc

    RF Connector
    N-type Female

    I/O Impedance
    50 ohm

    Noise Figure
    Max 5dB

    Group Time Delay
    Max 5µS

    TemperatureRange
    -25 degree Celsius to +55 degree Celsius

    Relative Humidity
    Max 95%

    MTBF
    Min. 100000 hrs

    Power Supply
    DC -48V / AC220V (+/-15%), 50Hz

    UPS Backup Power Supply (Optional)
    6 hours / 8 hours

    Power Consumption
    Max 250W

    NMS Monitor Function
    Real-time alarm for Door Status, Temperature, Power Supply, VSWR,
    Output Power, Gain, Uplink ATT, Downlink ATT and etc.

    Remote Control Module (Optional)
    RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery
    Parts/Warranty
    Standard Package
    1) Signal Repeater (AC power cord EU standard/ US standard/ UK standard) 1PC
    2) Installation kit 1PC
    3) User manual 1PC

    Kingtone, a manufacturer production since 2006. We are focusing on the development, production and sales of a variety of mobile communication repeaters, signal boosters and function modules. Kingtone,connecting the world seamlessly !
    Our present manufacturing service:
    1) GSM/CDMA/WCDMA/IDEN/DCS/PCS/LTE and other Repeater, including:
    1. Single band Repeater
    2. Dual Band GSM Repeater
    3. Tri band Repeater
    4. Optic Fiber Repeater
    5. Wide Band Repeater
    6. Channel Selective Repeater
    7. ICS Repeater

    2)All kind of GSM Repeater Accessories, including:
    1.Antenna
    2.Splitter
    3.Connector
    4.Cable
    5.Functional Modules
