800-2700 MHz 3-Way Cavity Splitter

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-CPS-827-03
• Product Category:Power Splitter
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

3-way signal splitter is designed to split the mobile signal from the output of your repeater to up to three indoor coverage antennas.
The splitter is perfect for applications that require coverage of up to three different areas from a single repeater base unit.
Frequency Range 800-2700MHz which works with all bands:CDMA, GSM, DCS, PCS, 3G UMTS, 4G LTE ;

Mainfeature

• up to three different areas
• Wide Frequency Band
• Compact, lightweight design
• Easy to mount
• High isolation, low insertion loss and minimal VSWR
• Excellent value - Superior performance at a competive price

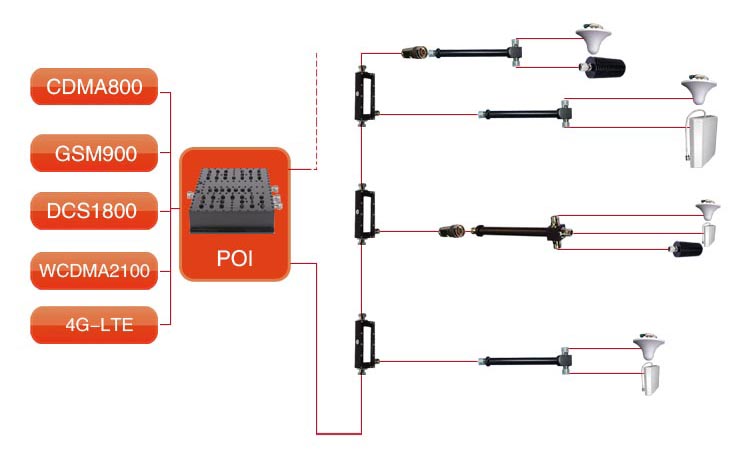

Application&scenarios

1. Used in telecommunication application to split the one Input signal into three paths

2. Widely used in in-Building DAS solutions.


Specification

Model No.:

KT-CPS-827-03

Frequency Range

800-2700MHz

Split Loss

4.8.0dB

Insertion Loss

0.3dB

VSWR max

1.25

PIM 3

-140dBc@2 x43dBm

Impedance

50Ω

RF Connector

N-F

Average Power

200W

Temperature

-20 ~ +70

Weight

0.22kg

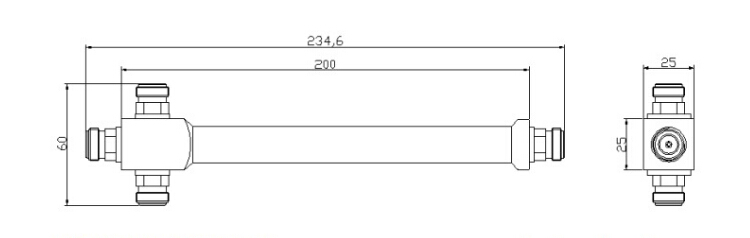

Dimension

235 * 60 * 25mm





Parts/Warranty
