Professional wireless communication equipment 3g gsm/wcdma 2100mhz signal booster repeater

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-GWY23
• Product Category:Dual Band Booster
• Power supply:
• Frequency:885-909MHz/930-960MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

00A cell phone signal booster (also known as cellular repeater or amplifier) is a device that boosts cell phone signals to and from your mobile phone whether at home or office or in any vehicle.

It does this by taking the existing cellular signal, amplifying it, and then broadcasting to an area in need of better reception.

If you're experiencing dropped calls, slow or lost internet connection, stuck text messages, poor voice quality, weak coverage, low bars, and other cell phone reception problems, a cell phone signal booster is the best solution that produces definite results.Professional wireless communication equipment 3g gsm/wcdma 2100mhz signal booster repeater.




Mainfeature

A. High-gain linear power amplifier

B . ALC and AGC function technology ,

C. Ultra-low noise receive amplifier

D. There is no interference to the base station ,right after the opening of the original system and the base station without the need to adjust parameters ,

E. Stable and reliable electromagnetic compatibility design .

F. The base station dose not cause an increase in background noise ,but will not lead to a decline in the quality of the base station communications

G. With full-duplex communication mode .

H. dispel the heat effective reasonable ,the structure is pretty ,the volume is suitable .

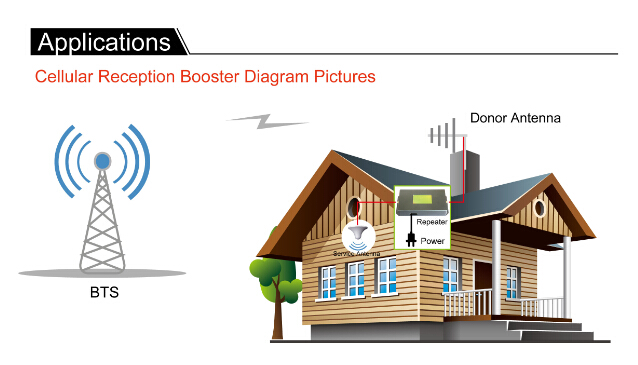

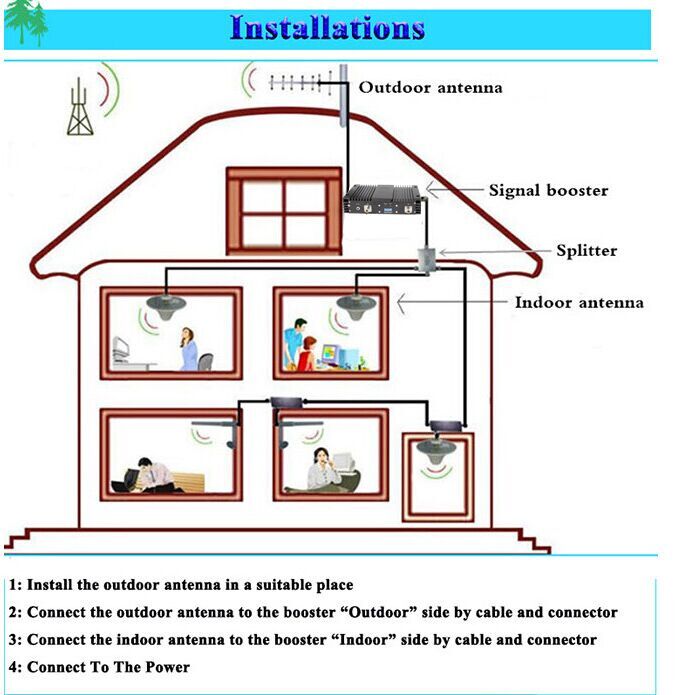

Application&scenarios





Specification
9

Model No

KT-GDY20 signal booster

Parameter data

Uplink

Downlink

Frequency Range

GSM+DCS

890~915/1920~1980mhz

935~960/2110~2170mhz

Output Power

20dBm

20dBm

Gain

60±2 dB

65±2dB

Bandwidth

25+75M

Ripple in Band

≤5dB

Spurious Emission

9KHz~1GHz

≤ -36 dBm

1GHz~12.75GHz

≤ -30 dBm

VSWR

≤3

MTBF

>50000 hours

Power Supply

AC:100~240V, 50/ 60Hz;DC:12V 2A

Power Consumption

< 5W

Impedance

50 ohm

Mechanical Specification

RF Connector

N-Female N

Dimensions (D*W*H )

195*180*20 (mm)

Net weight

< 1.45Kg

Packing size (D*W*H )

250*240*65(mm)

Gross weight

< 1.7Kg

Installation Type

Wall Installation

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

-10°C ~ 55°C

Parts/Warranty
012 months warranty
