3G 4G LTE Repeater 1800 2100MHz Cell Phone Signal Booster

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-3G/4G
• Product Category:Dual Band Repeater
• Power supply:AC 110VAC 220VDC-24V
• Frequency:1710-1785MHz/1805-1880MHz1920-1980MHz/2110~2170MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

3G,4G LTE mobile phone booster & repeater for wide band, band selective, digital and optical fiber, indoor & outdoor wireless coverage solution.

Dual band high gain & power mobile repeater that amplifies voice, text and data in 1800 and 2100 MHz at a time.


Mainfeature

◇ High linearity PA; High system gain;
◇ Intelligent ALC technology;
◇ Full duplex and high isolation from uplink to downlink;
◇ Automatic Operation convenient operation;
◇ Integrated technique with reliable performance;
◇ Local and remote monitoring (optional) with automatic fault alarm &remote control;
◇ Weatherproof design for all-weather installation;

Application&scenarios

3G 4G LTE Repeater 1800 2100MHz Cell Phone Signal Booster to expand signal coverage of fill signal blind area where signal is weak
or unavailable.
Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
Indoor: Hotels, Exhibition Centers, Basements, Shopping
Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:

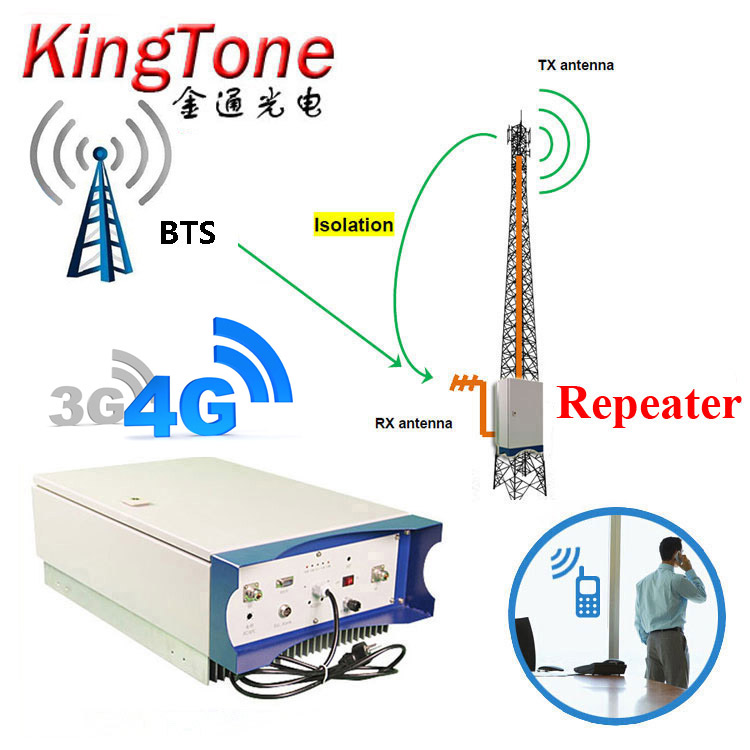

The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;

And can meet the requirement of antenna isolation to avoid self‐oscillation.


Specification

Items

Testing Condition

Specification

Uplink

Downlink

Working Frequency(MHz)

Nominal Frequency

1710-1785MHz;

19201980MHz ;

1805-1880MHz;

21102170MHz;

Gain(dB)

Nominal Output Power-5dB

95±3

Output Power (dBm)

wcdma modulating signal

37

43

ALC (dBm)

Input Signal add 20dB

Po≤±1

Noise Figure (dB)

Working in-bandMax. Gain

≤5

Ripple in-band (dB)

wcdmaSummit effective work within the bandwidth)

≤3

wcdma (work effectively within the bandwidth)

≤4

Frequency Tolerance (ppm)

Nominal Output Power

≤0.05

Time Delay (us)

Working in-band

≤5

Peak Phase Error(°)

Working in-band

≤20

RMS Phase Error (°)

Working in-band

≤5

Gain Adjustment Step (dB)

Nominal Output Power -5dB

1dB

Gain Adjustment Range(dB)

Nominal Output Power -5dB

≥30

Gain Adjustable Linear(dB)

10dB

Nominal Output Power -5dB

±1.0

20dB

Nominal Output Power -5dB

±1.0

30dB

Nominal Output Power -5dB

±1.5

ACPR (dBc)

±5.0MHZ

≤45

≤-45

±10.0MHZ

≤-55

≤-55

Spurious emissions

9-150Khz (peak value)

-36dBm/1Khz

-36dBm/1Khz

150Khz-30Mhz (peak value)

-36dBm/10Khz

-36dBm/10Khz

30Mhz-1Ghz (peak value)

-36dBm/100Khz

-36dBm/100Khz

VSWR

BS/MS Port

1.5

I/O Port

N-Female

Impedance

50ohm

Operating Temperature

-25°C ~+55°C

Relative Humidity

Max. 95%

MTBF

Min. 100000 hours

Power Supply

DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)

Parts/Warranty
Warranty: 12months after shipment date;
