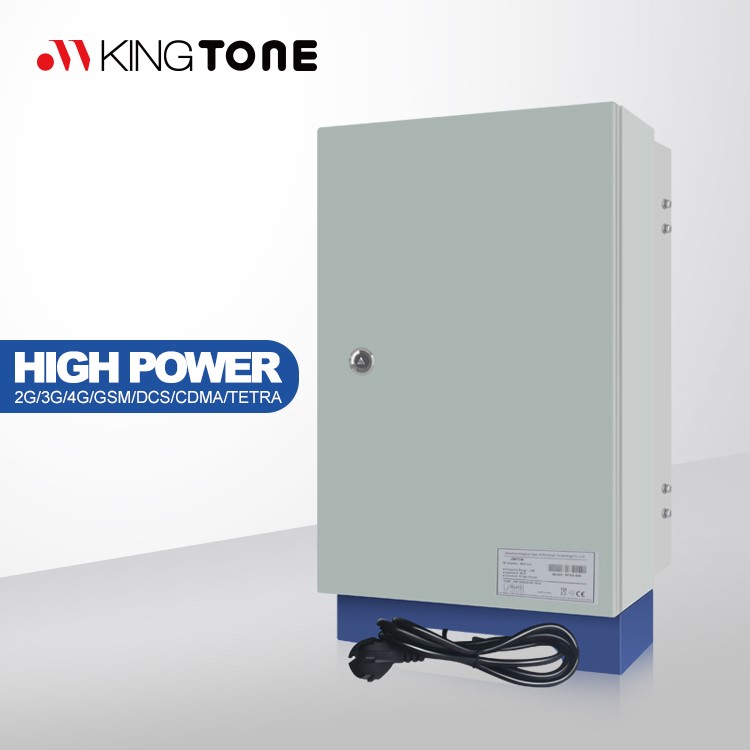

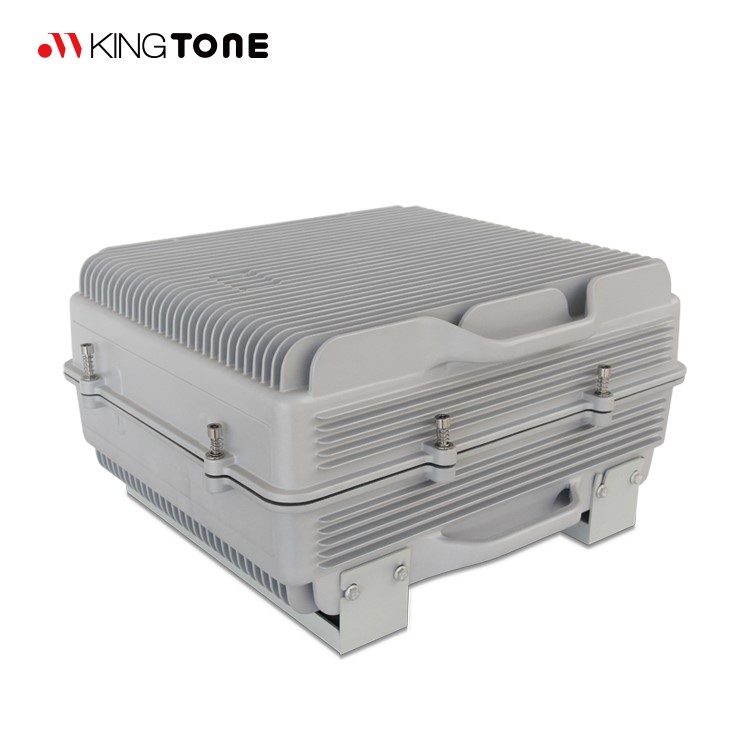

UHF Tetra 400MHz Repeater Fiber Optic Signal Amplifier BDA widely used in trunking communication systems

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:
• Product Category:VHF/UHF Repeater
• Power supply:AC 110VAC 220VDC-24V
• Frequency:UHF 400-470Mhz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

The TETRA Fiber Optic BDA (Bi-directional Amplifier) is designed to solve problems of weak mobile signal in the place that is far away from the Base station (BS) and has fiber optic cable network underground.
The system consists of two parts: Donor unit and Remote unit. The Donor unit captures the BS signal via direct coupler and closed to BS, then converts it into optic signal and transmits the amplified signal to the Remote unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BS via the opposite direction.
FOR is designed for both outdoor and indoor applications and the best suitable applications are for extending the coverage in large buildings (IBS), highways, tunnels and remote villages. FOR can be customized for single and multiple technologies.



Mainfeature

A.The advantages of the repeater are :

  • Low cost compared to a BTS
  • Easy installation and use
  • High reliabilit

B.Hot Selling 3 Types Tetra/UHF BDA:

  • Tetra BDA Trunk Amplifier System
  • Tetra BDA Band Selective Repeater System
  • Tetra BDA Fiber Optic Repeater System



Application&scenarios

The Kingtone Repeater solution also allows :

  • to extend the signal coverage of a BTS in urban and rural
  • to fill the white areas in rural and mountainous areas
  • to insure coverage of infrastructure such as tunnels, shopping malls,
  • parking garages, office buildings, hangars companies, factories, etc ...


Specification

Item

Specifications



Donor Unit

Remote Unit

Working Frequency

Up link

410415MHZ

Down link

420-425 MHZ

Maximum Input power (Non-Destructive)

10dBm

Transmission Distance

<20km

Output Power

40dBm/43dBm

OIP3

>60dBm

Gain

Cable access

>65dBm

Gain Adjustment Range

1~31 dB @ step of 1 dB

Voltage Standing wave ratio

<1.5



Noise figure

<5dB (only for up link)

In-band Ripple

<3dB

Spurious Emission



With in working band

<15dBm/30kHz

Out of working band (f>2.5MHz)

9 kHZ~1GHz: <-36dBm/30kHZ

1 Ghz~12.75 GHz: <-30dBm/30kHZ

In-band inter-modulation attenuation

<-40 dBc/30kHZ(measured under rated output power)

System delay

<5 sec



Phase Distortion across bandwidth

<6.1o (RMS) and <24.5o (Peak)

Error vector magnitude (EVM)

<12.5%

I/O Impedance

50

RF connector

N-type (female)/Changeable/bottom of casing

Fiber Optic Light source

Laser unit (Wave length: 1310nm/1550nm)

Optical output power

>0dBm (1310nm)/>3dBm (1550nm)

Optical Receiver sensitivity

<25dBm

Temperature Range

Operation: 25oC ~+55oC/Storage: 30oC~+60oC

Relative Humidity Range

<95% (non-condensing)

Relative supply (customized)

DC+24V/AC 220V+15% or AC 110V+15%, 50Hz

Parts/Warranty
12months
