698-2700MHz Directional Panel Antenna 90degree 11dBi High Gain CDMA/GSM/PCS/3G/WLAN/LTE 4G Antenna

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT--7027S-D0911L90
• Product Category:Antenna
• Power supply:
• Frequency:885-909MHz/930-960MHz890-915MHz/935-960MHz1710-1785MHz/1805-1880MHz1850-1910MHz/1930-1990MHz1920-1980MHz/2110~2170MHz806 – 821MHz/851 - 866MHz2500-2570MHz/2620-2690MHz824 – 849MHz/869 - 894MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

698-2700MHz Directional Panel Antenna 90degree 11dBi High Gain CDMA/GSM/PCS/3G/WLAN/LTE 4G Antenna


Mainfeature

Feature:
● High gain
● Full day working
● Optimized dimension
● Dual polarization

Application&scenarios

Application:
CDMA/GSM/PCS/3G/WLAN/LTE
CDMA/GSM/PCS/3G/WLAN/LTE System




Specification

KT-7027S-D0911L90

Electrical Specifications

Frequency range

698960

17102700

Polarization

±45º

GaindBi

9

11

half-power beam width

H:90 V:50

H:90 V:30

Front-to-back ratiodB

≥25

≥25

Input ImpedanceΩ

50

Isolation between ports

≥28dB

Cross-polar ratio

≥15dB@0º ≥10dB@+/-60º

Sidelobe suppression for first sidelobe above horizon

15 dB

VSWR

≤2.0

≤1.5

Maximum input powerW

400

200

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

2-N Female

Dimensions-mm (Height/Width/Depth)

660*280*125

Packing sizemm

700*320*210

Antenna weight kg

7

Radome material

UPVC

Radome color

Gray

Mechanical tilt°

010

Operating temperature°c

-4060

Rated Wind Velocitym/s

60

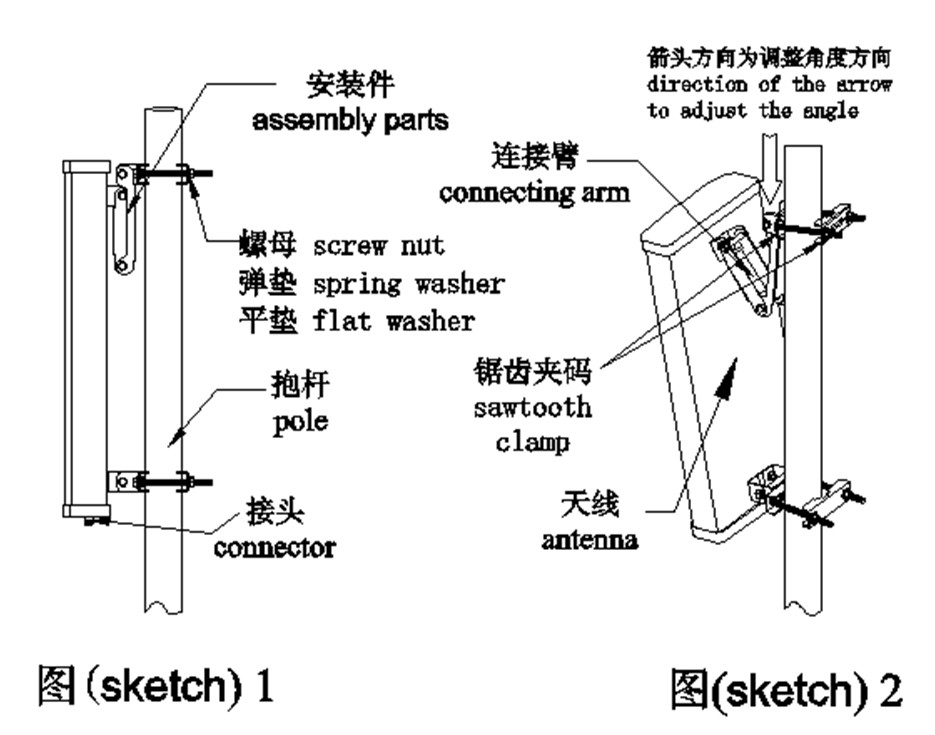

Mounting hardwaremm

3590

Parts/Warranty
■ Contact Us
E-mail:
Products: UHF Tetra 400MHz Repeater Fiber Optic Signal Amplifier
BDA widely used in trunking communication systems
Subject:
Message:
Quantity needed:
Verification:
■ Solution&Application
  • *Model : KT-DRP-B75-P37-B
    *Product Category : 5W DCS1800MHz Band Selective Repeaters

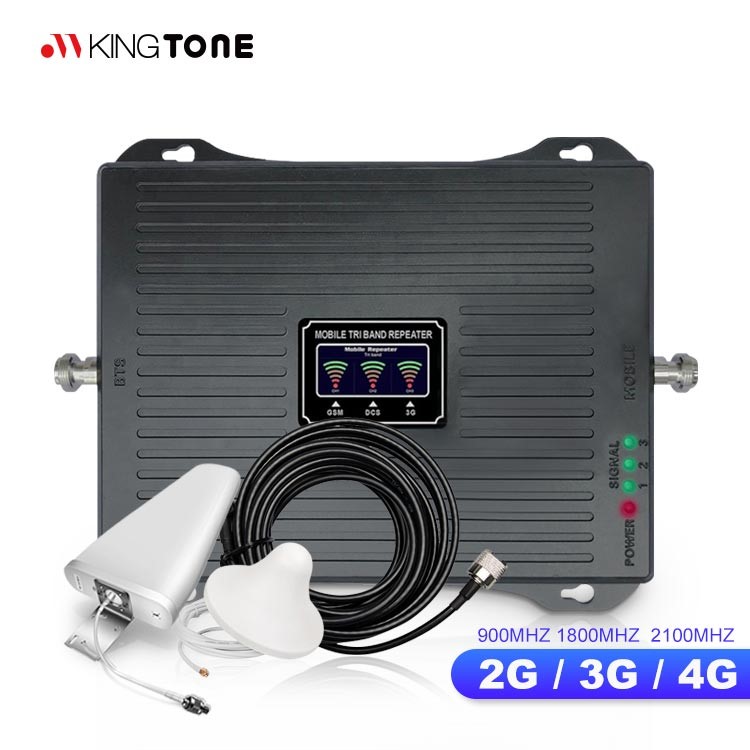

  • *Model : KT-99P
