NEW ARRIVAL 5W UHF PORTABLE DUPLEXER REPEATER MINI REPEATER TWO WAY RADIO WALKIE TALKIE IBS DAS

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:Kingtone XR-1000
• Product Category:Walkie Talkie Repeater
• Power supply:
• Frequency:UHF 400-470Mhz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

Kingtone XR-1000 portable communication UHF repeater, this full duplex mini base station uhf repeater designed to expand the communication range of walkie talkies or mobile radios, greatly improving their communication capabilities.



Mainfeature

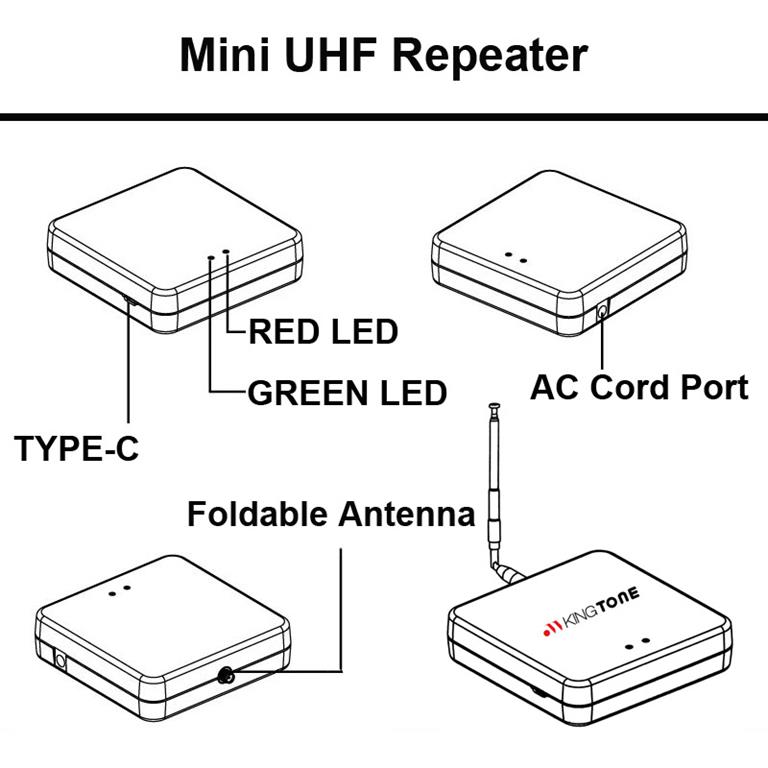

Features:
l Economical UHF Repeater
l Small and compact
l Duplexer inside
l TYPE-C interface
l Simple installation and flexible operation;

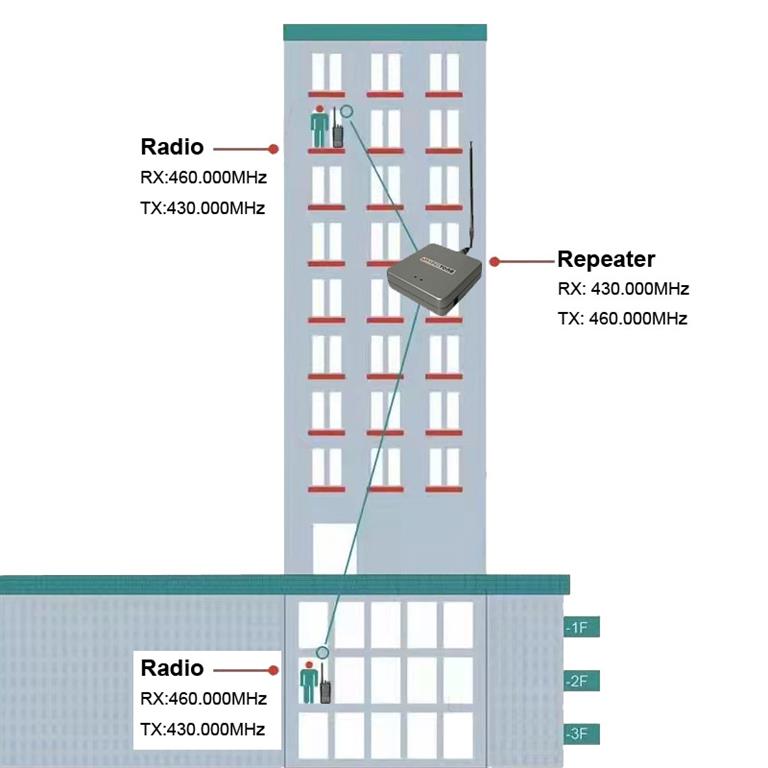

Application&scenarios

Specification

Receiving Frequency (RX)

430.000MHz+2MHz

Transmitting Frequency (TX)

460.000MHz+2MHz

RF Output Power

5 Watt

Receiving Sensitivity

0.22uV@12.5kHz

0.2uV@20/25KHz Typical

Power Adapter

12V/3A

Transmission Current

1.4A

Antenna Length

375mm (Foldable Antenna)

Size

100mmx100mmx26mm (Not including Antenna)

Weight

N.W.:310g ; G.W.: 590g;

Parts/Warranty

1* Mini Repeater
1* Power Adapter
1* Foldable Antenna
1* User Manual
