Diplexer Double 1710-1880MHz /1920-2690MHz

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:TNA1909
• Product Category:Combiner / Diplexer
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty


Mainfeature

Main Features

§ Compact, low weight

§ Contain DCS, WCDMA, WLAN and LTE band

§ Low PIM

§ High reliability

§ Simple installation





Application&scenarios

Specification

Electrical Specifications

Frequency

CH1: 1710 MHz to 1880 MHz

CH2: 1920 MHz to 2690 MHz

Return loss

VSWR

19dB

£1.25

Maximum Insertion loss

Port 1 to Port 3 : £ 0.35 dB

Port 2 to Port 3 : £ 0.35 dB

Isolation Between Input Port

Port 1 to Port 2 : ≥ 50dB

RF Input Power per port

250 Watt (AVG)

Intermodulation (3rd order)

£-153dBc @ 2 x 20 W

Impedance

50 W



Environmental Specifications

Operating temperature range

-40°C to +60°C

Storage temperature range

Lightning protection

-40°C to +85°C

IEC 61000-4-5 level 4 complied

Relative humidity

5% - 95%

Barometric pressure

55 KPa -106 KPa

Applications

IP67



Mechanical Specifications

Connectors type

Input Port

Output Port

DIN 7/16 Female Long-Neck

4

2

Weight (Dual Unit)

3.5Kg (Include mounting bracket)

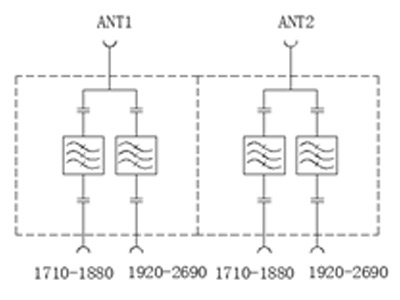

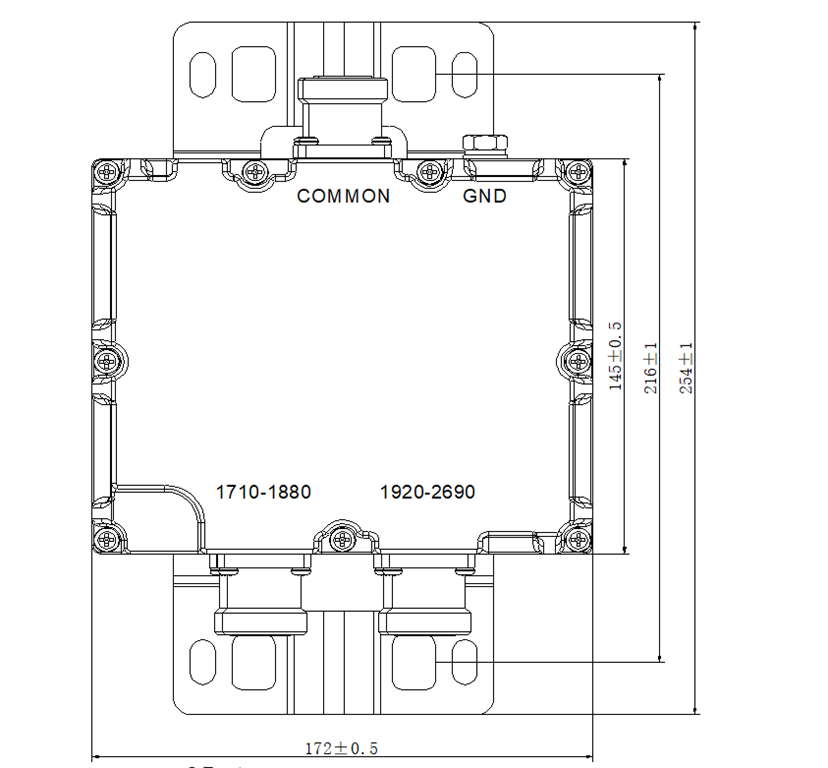

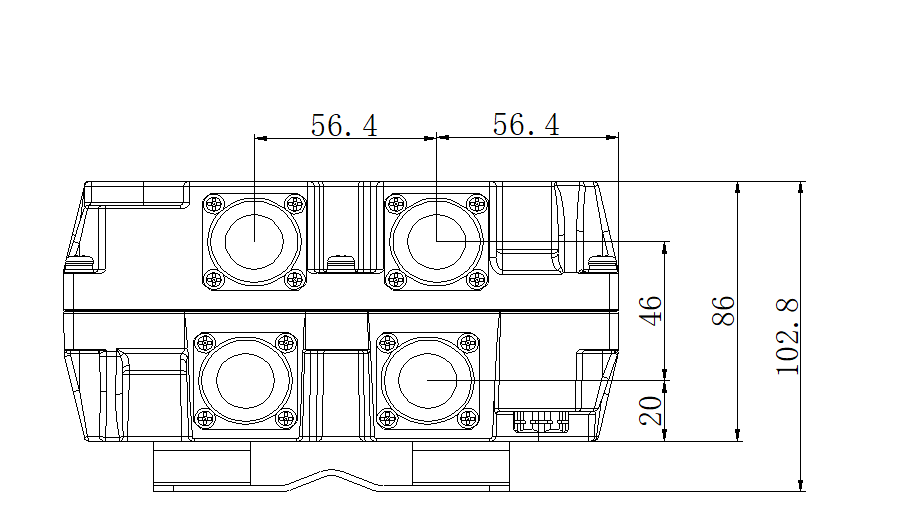

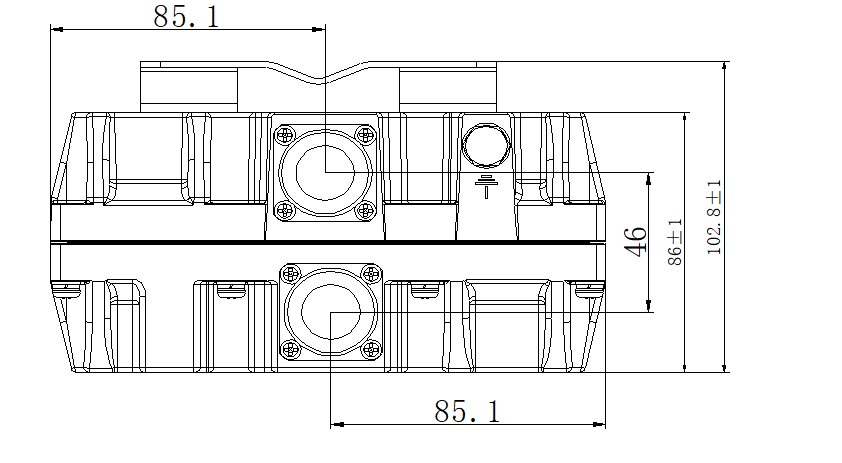

Outer Dimension(mm)

254*172*102.8mm

Color

Light grey (RAL 7035)

Mounting

Metal Bracket/Clamp for Ф40-135 mm Pole/Mast installation or Wall Installation

Packing

1Pce in box (installation accessories included)
