    33dBm GSM&DCS 900&1800 2W ICS cellular Repeater

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-GSM/DCS ICS REPEATER
    • Product Category:ICS Repeater
    • Power supply:AC 110VAC 220VDC -48VDC-24V DV-12V
    • Frequency:890-915MHz/935-960MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

     33dBm GSM&DCS 900&1800 2W ICS Repeater

    Kingtone GSM DCS DUAL BAND  ICS Repeater (Interference Cancellation System) is a new kind of single-band RF repeater that can automatically detect and cancel the interference signals caused by oscillation of RF feedback between the Donor and Coverage Antennas in real time by adopting DSP (Digital Signal Processing) technology. It can continuously and stably cancel the interference signals and be adapted to any changes in the surrounding RF environment (including fixed and mobile objects) .



    Mainfeature

    Main Features :
    ◇ Real-time cancellation of interference signal (incl. multi-path fading, feedback signal)；
    ◇  ICS function to prevent self-oscillation,Enhance gain and coverage range, and reduce isolation requirement between donor antenna and coverage antenna；
    ◇  Highly selective digital channel selector can process 12 channels simultaneously；
    ◇  Network manage remote monitoring function；
    ◇  Integrated technique with reliable performance;
    ◇  Local and remote monitoring (optional) with automatic fault alarm &remote control;

    ◇  Weatherproof design for all-weather installation;



    Application&scenarios

    ICS Repeater Applications
        To expand signal coverage of fill signal blind area where signal is weak
    or unavailable.
       Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
       Indoor: Hotels, Exhibition Centers, Basements, Shopping
    Malls, Offices, Packing Lots etc.

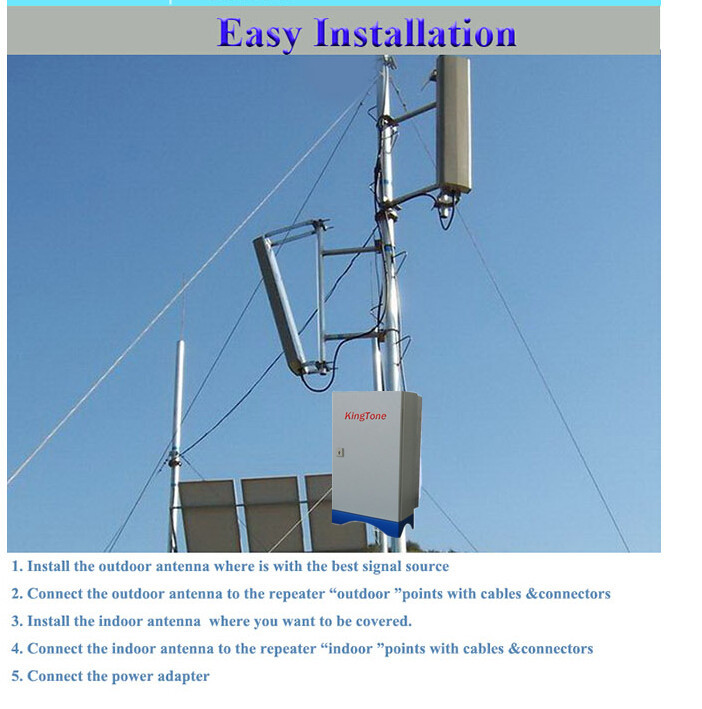

    It is mainly applicable to such case:
        The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;
        And can meet the requirement of antenna isolation to avoid self‐oscillation.



    Specification

    Items

    Specification

    Uplink

    Downlink

    Working Frequency

    900～907.5 MHz

    1722.5～1730MHz

    945～952.5 MHz

    1817.5～1825MHz

    Band Width

    7.5

    7.5

    Output Power

    33±1dBm

    33±1dBm

    ALC

    ≥10dB

    Max.Gain

    90±3 dB

    Gain Adjustment Range

    ≥30dB

    Gain Adjustable Linear

    0～10 dB

    ±1.0dB

    10～20 dB

    ±1.0dB

    ＞20 dB

    ±1.5dB

    Gain Control Step

    1 dB / Step

    Inband Ripple

    ≤2.0dB

    Noise Figure

    ≤5dB

    Frequency Error

    ≤5dB

    GMSK Modulation Precision

    ≤±5×10-8

    Gain Control Step

    Single Unit not exceed 6.1°RMS & 24.5°peak；

    System not exceed 7°RMS & 28°peak。

    Spurious Emission

    Working In-band

    ≤-25Bm/30 kHz(Gain≤95dB）

    Working Out-band

    9KHz-1GHz: ≤-36dBm/30KHz

    1GHz-12.75GHz: ≤-30dBm/30KHz

    Intermodulation Attenuation

    Working In-band

    ≤-45dBc/30KHz

    ≤-45dBc/30KHz

    Working Out-band

    9KHz-1GHz: ≤-36dBm/30KHz

    1GHz-12.75GHz: ≤-30dBm/30KHz

    Out-band Suppression

    ±200KHz:≤-5dBc

    ±300KHz:≤-30dBc

    ±400KHz: ≤-50dBc

    600KHz: ≤-60dBc

    Mute & Noise Control Range

    Adjustable

    System Delay

    ≤12 us

    VSWR

    ≤1.5

    Ambient Temperature

    -15℃-55℃

    Ambient Humidity

    ≤95%(no dew)

    Power Supply

    DC +24V±10V

    Protection Class

    IP65

    Dimensions

    59x37x22cm

    Weight

    26kg

    Parts/Warranty
    Delivery Detail:
    Shipped in 20 days after payment
    warranty :
    1 year for repeater .6month for accessories .
