VHF BDA Bi-directional amplifier

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:UHF BDA Bi-directional amplifier
• Product Category:VHF/UHF Repeater
• Power supply:AC 110VAC 220VDC -48VDC-24V AC 240
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

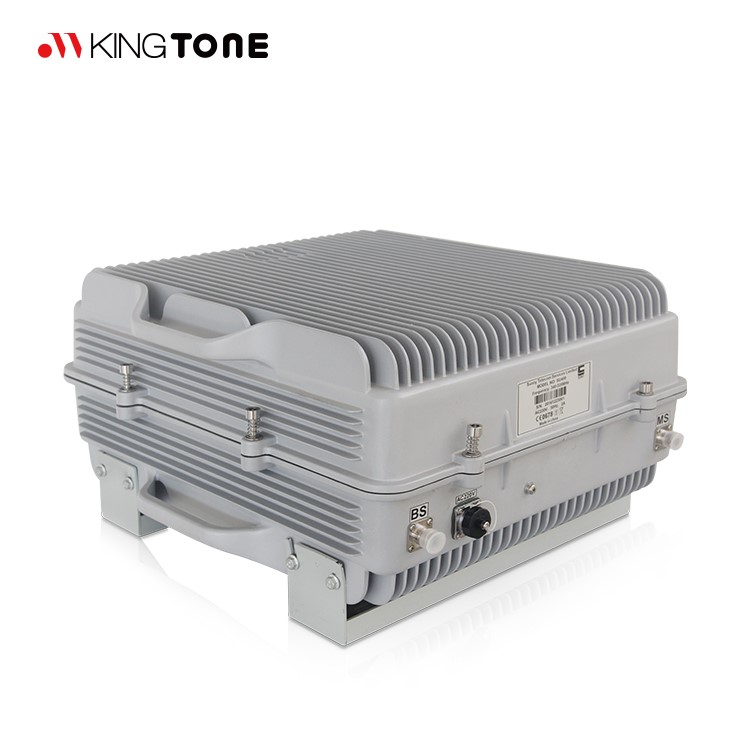

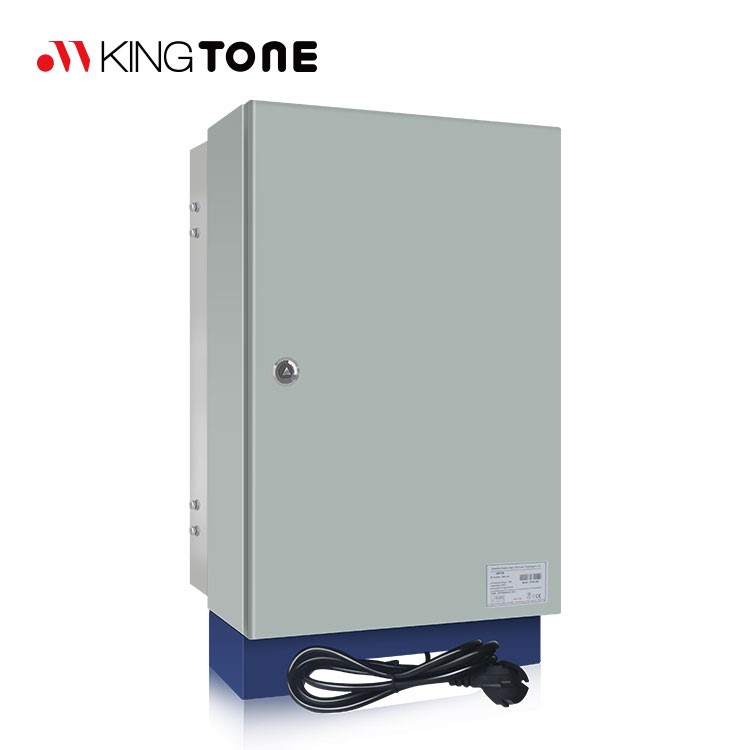

 UHF BDA Bi-directional amplifier uhf walkie talkie power amplifier
  Kingtone Bi-Directional Amplifiers system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Bi-Directional Amplifiers system is to receive low-power signal from BTS via radio frequency transmission nd then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

Mainfeature

UHF BDA Bi-directional amplifier uhf walkie talkie power amplifier Main Features

1. High isolation full duplex design, easy to install.
2. Low noise figure, high receive sensitivity.
3. With ALC and MLC function to ensure stable output power.
4. Low power consumption, environmental protection and energy saving.
5. Modular structure design, easily to upgrade the system.
6. High Q cavity filter and SAW surface acoustic wave filter, high out of band rejection.
7. Adopt the world's most advanced high linearity, low intermodulation LDMOS power amplifier.
8. Adopt the advanced digital PLL, TCXO, OCXO technology, frequency stability and high accuracy.
9. Perfect remote and local network monitoring function.
10. Waterproof design work for all weather indoor and outdoor.





Application&scenarios


UHF BDA Bi-directional amplifier uhf walkie talkie power amplifier Applications
    To expand signal coverage of fill signal blind area where signal is weak
or unavailable.
   Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
   Indoor: Hotels, Exhibition Centers, Basements, Shopping
Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
    The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;
    And can meet the requirement of antenna isolation to avoid self‐oscillation.




Specification

Technical Specifications

Items

Testing Condition

Specification

Meno

Uplink

Downlink

Working Frequency(MHz)

Nominal Frequency

146-150MHz

158-162 MHz

The frequency can be specified by customer

Bandwidth

Nominal Band

4MHz



Gain(dB)

Nominal Output Power-5dB

45±3



Output Power (dBm)

modulating signal

30

40



ALC (dBm)

Input Signal add 20dB

Po≤±1



Noise Figure (dB)

Working in-band(Max. Gain)

≤15



Ripple in-band (dB)

Nominal Output Power -5dB

≤3



Frequency Tolerance (ppm)

Nominal Output Power

≤0.05



Time Delay (us)

Working in-band

≤5



Gain Adjustment Step (dB)

Nominal Output Power -5dB

1dB



Gain Adjustment Range(dB)

Nominal Output Power -5dB

≥30



Gain Adjustable Linear(dB)

10dB

Nominal Output Power 5dB

±1.0



20dB

Nominal Output Power -5dB

±1.0



30dB

Nominal Output Power -5dB

±1.5



Inter-modulation Attenuation (dBc)

Working in-band

≤-45



Spurious Emission(dBm)

9kHz-1GHz

BW:30KHz

≤-36

≤-36



1GHz-12.75GHz

BW:30KHz

≤-30

≤-30



VSWR

BS/MS Port

1.5



I/O Port

N-Female



Impedance

50ohm



Operating Temperature

-25°C  +55°C



Relative Humidity

Max. 95%



MTBF

Min. 100000 hours



Power Supply

DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)



Remote Monitoring Function

Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power



Remote Control Module

RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery

Parts/Warranty
12 month warranty for repeater equipment ,
6months for accessories of repeater
■ Contact Us
E-mail:
Products: UHF Tetra 400MHz Repeater Fiber Optic Signal Amplifier
BDA widely used in trunking communication systems
Subject:
Message:
Quantity needed:
Verification:
■ Solution&Application
  • *Model : KT-IRP-B15-P27-B
    *Product Category : 27dBm IDEN800 Band Selective Repeater

  • *Model : KT-CRP-B25-P37-B

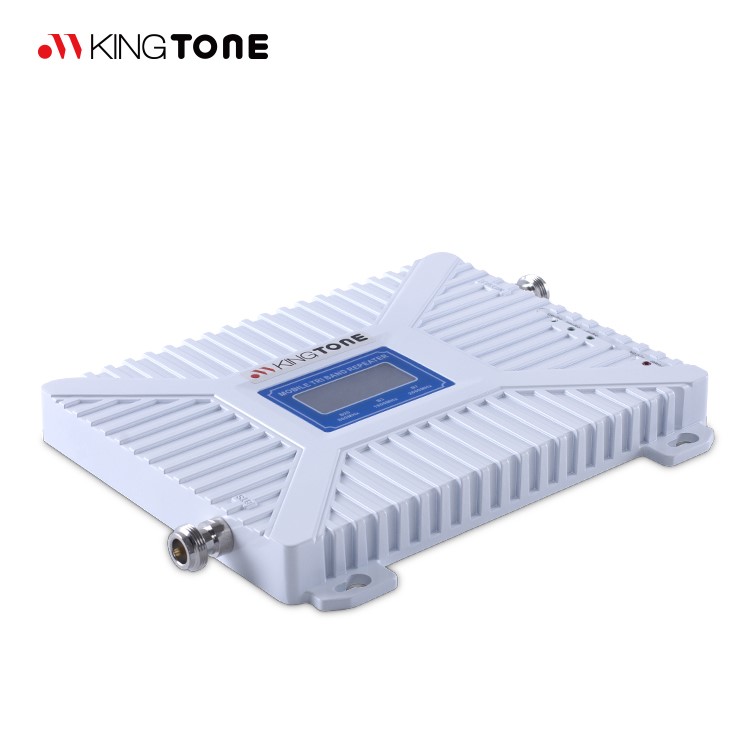

    *Product Category : 37dbm 5W GSM850Mhz cell phone signal Band Selective Repeater

  • *Model : KTWTD-13090-08V / KTWTD-13090-09V
    *Product Category : 90 °-13.5dBi base plate directional antenna (824-960MHz)

  • *Model : KT-1727-16

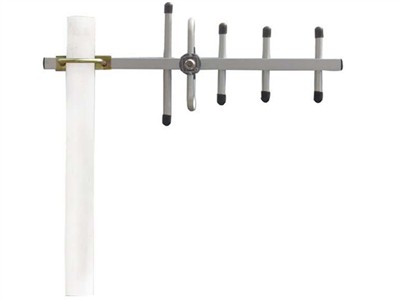

    *Product Category : 1710-2690MHz DCS,3G,WIFI,LTE,4G Directional 16dBi Yagi Antenna
