    DCS1800+WCDMA2100 Pico ICS Repeater

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:DI188515WI218510
    • Product Category:FDD-LTE Repeater
    • Power supply:AC 110VAC 220VDC -48V
    • Frequency:890-915MHz/935-960MHz1710-1785MHz/1805-1880MHz1850-1910MHz/1930-1990MHz1920-1980MHz/2110~2170MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    DCS1800+WCDMA2100 Pico ICS Repeater (DI188515WI218510)

    JIMTOM® DCS1800+WCDMA2100 Pico ICS Repeater provides the most cost-effective solution to improve user experience of high quality GSM+WCDMA access in indoor environment. Equipping innovative plug-and-play enabling technologies, general users are able to easily install by themselves without any professional skill.

    Significant Features:

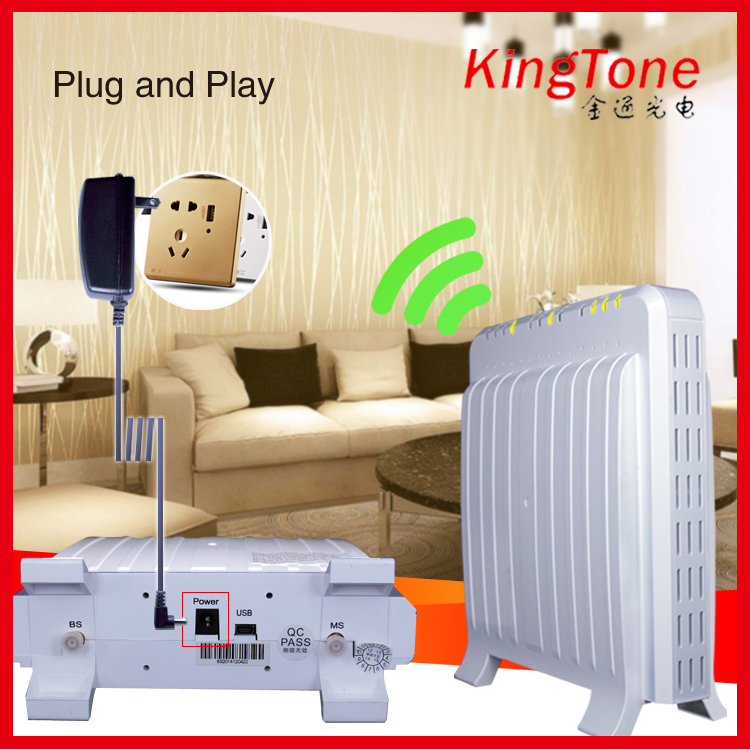

    l Plug-and-Play

    l Channel Selective

    l Up Link Mute

    l 30dB Adaptive Echo Interference Cancellation

    l 85dB Gain(External Donor Antenna) with JIMTOM® Cognitive Auto Power Level Control

    l Channel-based Power/Gain Configuration and Control

    l Auto Oscillation prevention/Interference Cancellation

    Mainfeature

    Advantage:

    l Low Power Consumption

    l Light Weight

    l No Fan inside

    l High Gain

    l Small Dimension

    l It’s really high Price/performance ratio



    Applications:

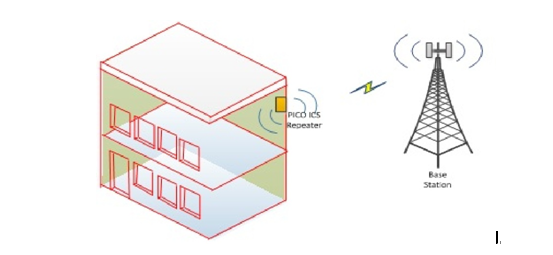

    No professional configuration required but just Plug and Play, JIMTOM® DCS+WCDMA Pico ICS Repeater is a quick solution to extend DCS+WCDMA signal coverage to small and medium size indoor environment such as houses, hotels, hot spots, shops, offices, meeting rooms, apartments, and so on.30dB Adaptive Echo Interference Cancellation with JIMTOM® Cognitive Auto Power Level Control makes JIMTOM® DCS+WCDMA Pico ICS Repeater able to adapt to the time-variant isolation environment and further provides the optimized signal coverage all the time.





    Application&scenarios

    Specification

    WCDMA Specification

    Item

    Specification

    System

    UMTS

    Frequency Range (Customized)

    Uplink (MHz)

    1970-1980

    Downlink (MHz)

    2160-2170

    UL/DL Total Output Power

    UL³+19dBm/Output Power: DL ³ 19dBm

    Independently Settable Per Channel

    Supported Number of Channels

    Uplink

    1, 2, or3 Carriers in 20MHz, Manual Channel Selective

    Downlink

    1, 2, or3 Carriers in 20MHz, Manual Channel Selective

    Max. Gain

    85dB, Independently Settable Per Channel

    AGC Control Range

    30dB, Independently Working Per Channel

    Gain Control Range

    30dB (0.5dB/Step), Independently Settable Per Channel

    Out of Band Gain

    3GPP TS 25.106

    Gain Flatness

    ≤ 3dB(Peak-to-Peak)

    Error Vector Magnitude(EVM)

    ≤ 10% (PCDE ≤ -35dB)

    Interference Cancellation

    30dB

    SpuriousEmissions

    3GPP TS 25.106

    Input/Output Intermodulation

    3GPP TS 25.106

    Adjacent Channel Rejection Ratio

    3GPP TS 25.106

    Noise Figure

    ≤5dB (@Max. Gain)

    Group Delay

    ≤6µs

    Operating Temperature Range

    -30°C~ +55°C

    Relative Humidity

    95%

    Standard Compliance

    3GPP TS 25.143、EN 60950、ETSI EN 301 489-1、ETSI EN 301 908-11

    VSWR

    VSWR ≤ 1.5

    Note: Specification subject to change without notice

    Other Specification

    Operating Temperature Range

    -30°C~ +55°C

    Relative Humidity

    95%

    Power Supply

    90~240ACV, 50/60Hz

    Power Consumption

    ≤ 30W

    RF Connector

    SMA Female for External Antenna Extension

    PC Control Interface

    USB

    LED Indicator

    Input RSSI, AGC Alarm, Isolation Alarm, Power On, Sleep, Output Power



    Parts/Warranty
    1year warranty
