DC-3GHz 50 ohm 100W N Connector RF Termination Dummy Load

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-100Y200-30-01
• Product Category:Attenuator & Dummy Load
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

Dummy Load is designed to absorb all the incident power with very little reflection,effectively terminating the line or port in its characteristic impedance.Termination are used in a wide variety of measurement systems;any port of a multi-port microwave device that is not involved in the measurement should be terminated in its characteristic impedance in order to ensure an accutate measurement.Terminations are also used in devices such as derectional couplers and isolators.
With power ratings from 2 to 300 watts fitted with N ro DIN-Male or female connectors.

Mainfeature

1. Maximum Frequency:3.0 GHz

2. Impedance:50 Ohm

3. Power: 100W

4. Package includes: 1pcs N male Terminal termination Dummy Load DC 3.0GHz

Application&scenarios

Specification

Model

KT-100Y200-30-01

Power

100W

FrequencyGHz

DC3G

VSWR

≤1.2

Connector

N-J

Color

Black

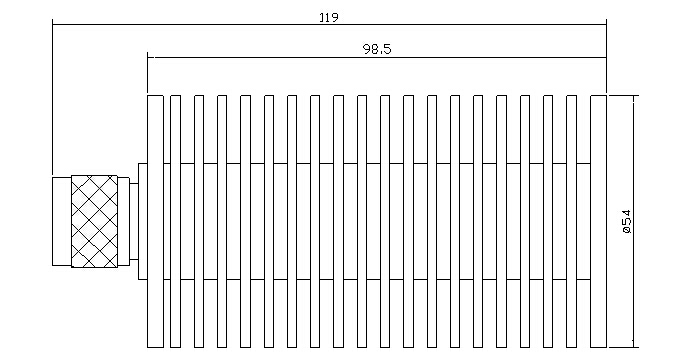

Size

Φ54*98.5 mm


Parts/Warranty
